Detailed Locus Information for CNAG_04268T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationexodeoxyribonuclease III
Gene SymbolAPN2
Phosphatase NameN/A
Phosphatase ClassEndonuclease exonuclease phosphatase
KEGG Linkout KEGG::CNI04070
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K107729.5e-165548.4
Amino Acid SequenceMRILTWNVNVLRTCLDYHPFSSMQKKNIEGLLDELDAQIFCFQEHKTVRTRLEKSMACPGPYDGFWTFPRSKTGYSGVCTYVDSRYCVPLKAEEGITGLLLGDRLSTMKPPWTDVERIGSYPDVNDMEWMDELDGTKFDVKKLDMEGRAVVCDFGLFVLFNLYCPNETNGARRPYKMNYLHALQERVHLLQAAGREVILVGDINIVRQPMDSGEGPVRSSAEQHYSHPARRILDDWCAPKGPMIDVVRESWPQRDDMFTCWNQKLDARSANYGSRIDYVLCTPGLRPWIKGGDILPKVYGSDHCPVYVDLHESIITSEGVTLHLRDMLNPKDRPSSTSPVYPNDAKREAPEPPRFATKFMDEFSGRQTSLKSFFGGESKRAQEKTNGASLTTSVSASASPTPTPTASELSTAVQDTPPVPAASKFDPSKIVLLPQAPEEGLSAPFNLARAAFSSLDNPSPVHSRELSSKTNGGTPVKATSSSKQEKSYPKPIDMTLDDDEDDEPMLISSKSKNKPPPKPTKSSSSGSKLASSQAKLSSFFSQPNTEGKRKSPPLPSSALPTSKRPSLAPIPQSNTDPFVASPSGTTAEDESQGMTEEENQLISQAIAEADAERAEKNAKAAPQWSSLFAKKLPPLCTVHHKPCKDFIVMKPGPNKGKRFWLCSLPVGAGYDMGRSKRPREDVNPKFRCNFFLWDSANSRKETPNEGKEKKEPEKEEKKL
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml2018
BYPD 30°C, concentration: 5x10^7 cells/ml2211
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml2491
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml1510
EYPD 37°C, concentration: 5x10^7 cells/ml1542
FYP+galactose 30°C, concentration: 2x10^8 cells/ml2145
Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_04268 5' flanking region primer 1TCGTCTTTGTGTGGTTGC
L2CNAG_04268 5' flanking region primer 2TCACTGGCCGTCGTTTTACACTTATGGCGACTTACGGG
R1CNAG_04268 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGGCAATGTCTGTATCACCGC
R2CNAG_04268 3' flanking region primer 2CGTCCGCCTGTATTTTATC
SOCNAG_04268 diagnostic screening primer, pairing with B79ATGATGCTGTTTTGCCCC
POCNAG_04268 Southern blot probe primerTTCTTTCCACATCGGTCC
STMNAT#102 STM primerCCATAGCGATATCTACCCCAATCT
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays

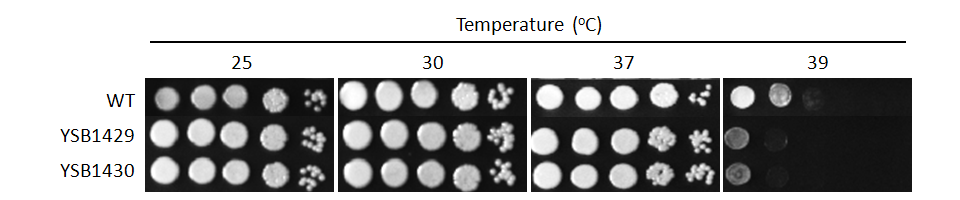

Growth
Growth phenotype

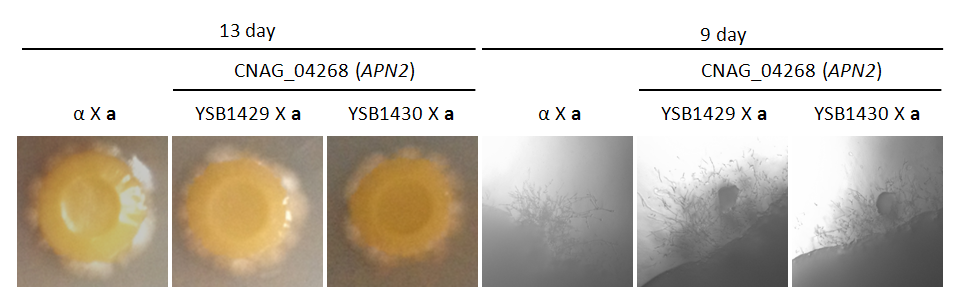

Mating Data
Mating phenotype
Virulence Factor Production

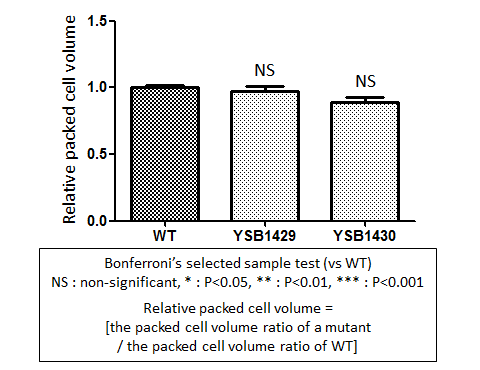

Capsule
Capsule phenotype

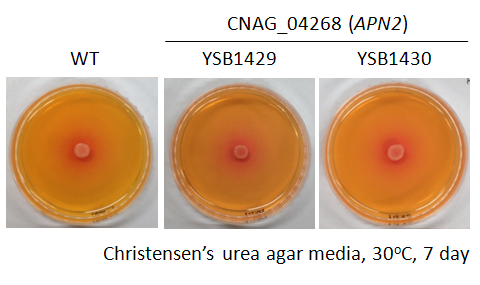

Urease
Urease phenotype
Melanin
Melanin phenotype
Stress Response and Adaptation
Osmotic Stress
Osmotic stress phenotype

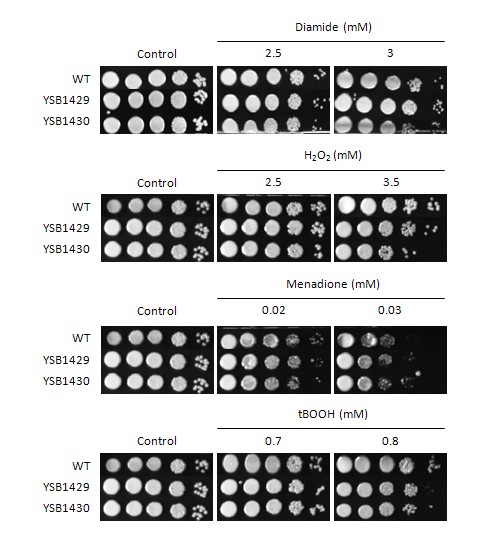

Oxidative Stress
Oxidative stress phenotype

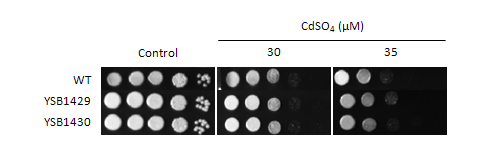

Heavy Metal Stress
Heavy metal stress phenotype
Cell Wall Stress
Cell wall stress phenotype
ER Stress
ER stress phenotype
Genotoxic Stress
Genotoxic stress phenotype
Antifungal Drug Susceptibility
Antifungal drug susceptibility

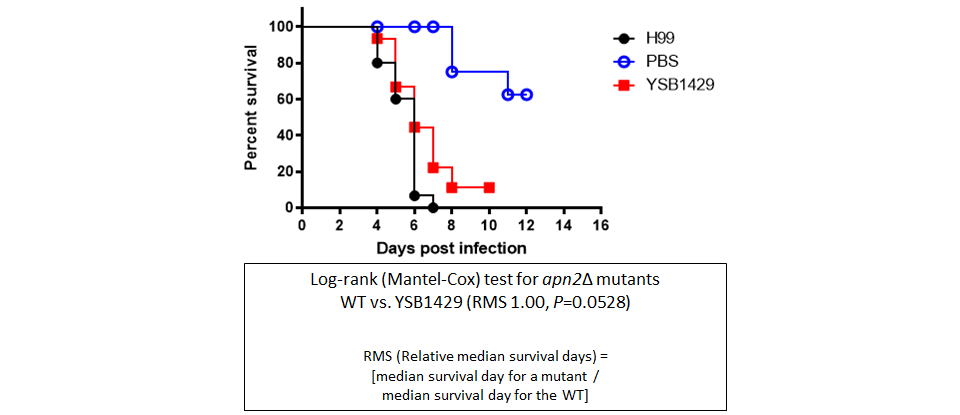

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data

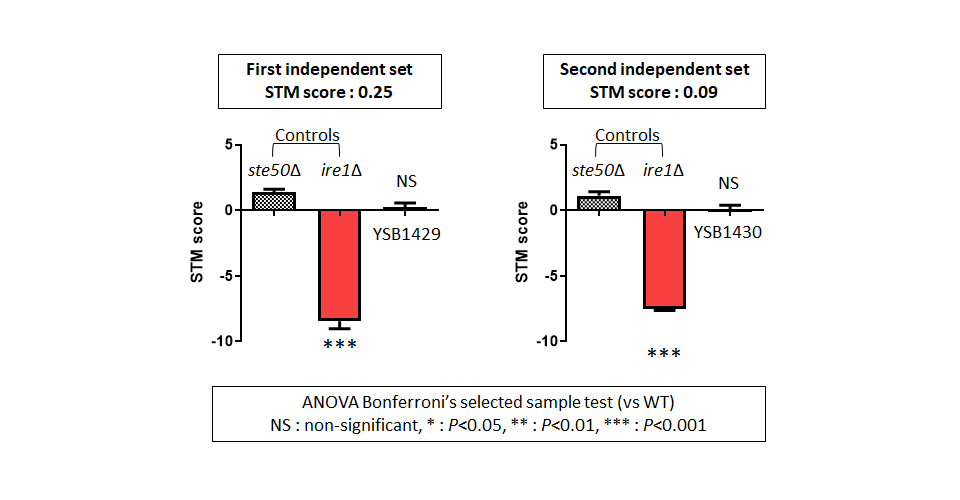

Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
