Detailed Locus Information for CNAG_04796T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationserine/threonine-protein phosphatase 2B catalytic subunit A1
Gene SymbolCNA1
Phosphatase NameN/A
Phosphatase ClassPhosphoprotein phosphatase
KEGG Linkout KEGG::CNJ02230
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K043483.2e-275913.5
Amino Acid SequenceMASPATQTANAIAAINNRSNLVIPEIDFTQHQLENGEIVSTTERVIKDVQAPAMYVPTDDQFWSKVDKTKPDIAFLKNHFYREGRLTEEQALYILEKGGELLRSEPNLLEVDAPITVCGDIHGQYYDLMKLFEVGGNPADTRYLFLGDYVDRGYFSIECVLYLWSLKMWYPDTLFLLRGNHECRHLTDYFTFKLECKHKYSETVYNACMESFCNLPLAAVMNKQFLCIHGGLSPELHTLDDLRSINRFREPPTQGLMCDILWADPLEDFGSEKTNENFLHNHVRGCSYFFTYNAACQFLERNNLLSIIRAHEAQDAGYRMYRKTKTTGFPSVMTIFSAPNYLDVYSNKAAVLKYESNVMNIRQFNCTPHPYWLPNFMDVFTWSLPFVGEKITDMLIAILNCCTKEELEEEDEEFPLNAPEPTDAESAAERRQIIKNKILAVGRMSRVFSLLREESERVSELKSISGSNALPAGMLASGAEGIKEAIQGFEDARKSDIENERLPPDIIDPDEDKPASPSASPIMPATPEEIPSEIPYDSPITGTPRTPISSAIASGSPGSPGTPTSPSIGGPPLTAWRPGHGRRTSLGTTKTSPSTRRRSLENTMHLIRDVVGGKDAQGDGQLERLAEVISSPTKGGQGE
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml11775
BYPD 30°C, concentration: 5x10^7 cells/ml11129
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml11569
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml8421
EYPD 37°C, concentration: 5x10^7 cells/ml7068
FYP+galactose 30°C, concentration: 2x10^8 cells/ml11774

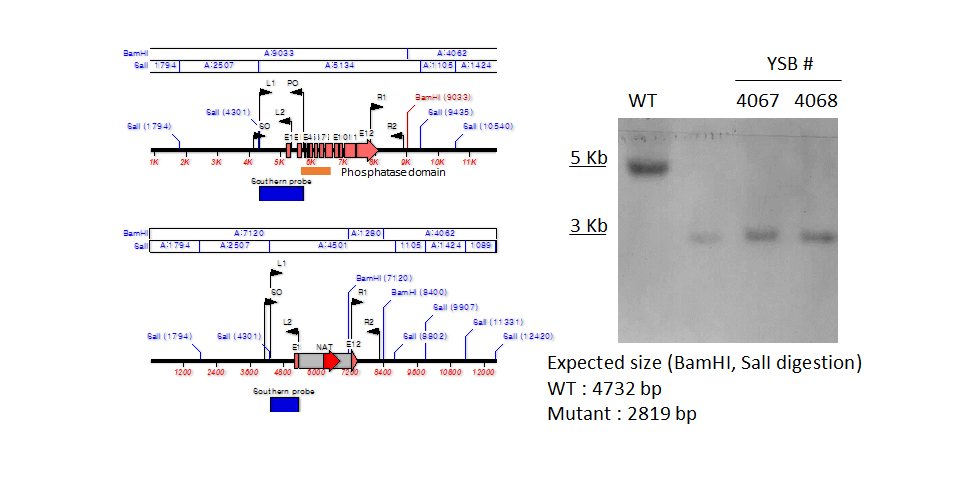

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_04796 5' flanking region primer 1GGCGTCAAAATACAACGG
L2CNAG_04796 5' flanking region primer 2TCACTGGCCGTCGTTTTACTTCACCGCTTTATCGTCTC
R1CNAG_04796 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGAGCCCTTTCCTGATTCTG
R2CNAG_04796 3' flanking region primer 2TACTCACTGTAAACCCCGC
SOCNAG_04796 diagnostic screening primer, pairing with B79ATTCTCCCAATCTGCTGG
POCNAG_04796 Southern blot probe primerAGTTTCTGCCCCATCATC
STMNAT#290 STM primerACCGACAGCTCGAACAAGCAAGAG
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays

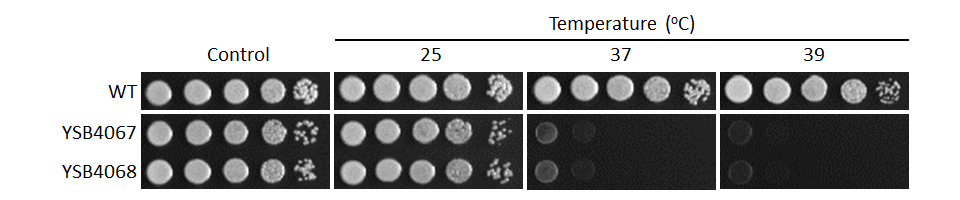

Growth
Growth phenotype

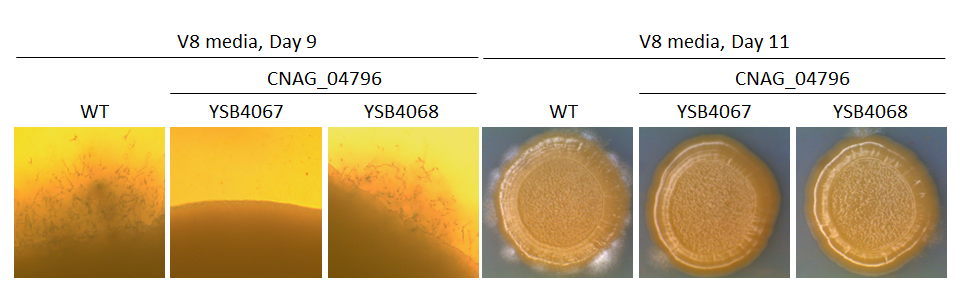

Mating Data
Mating phenotype
Virulence Factor Production

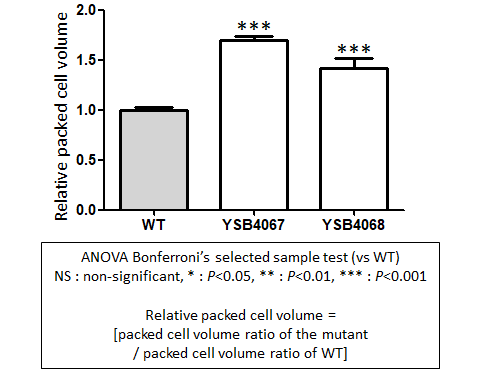

Capsule
Capsule phenotype

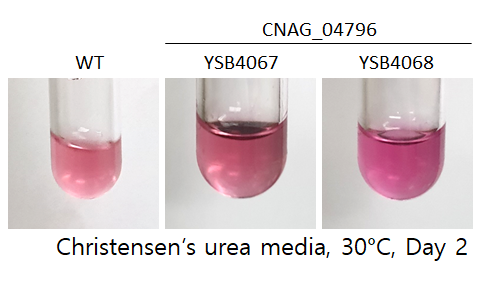

Urease
Urease phenotype

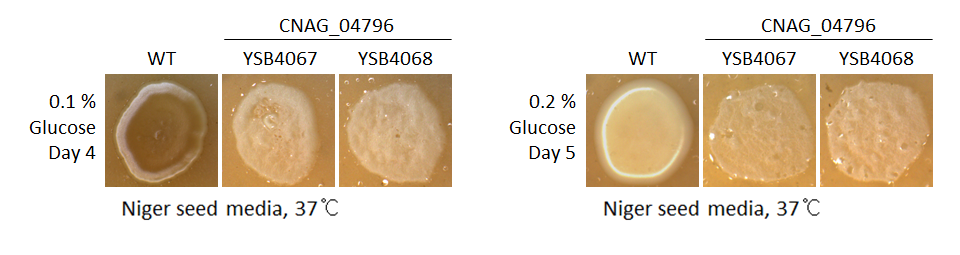

Melanin
Melanin phenotype
Stress Response and Adaptation

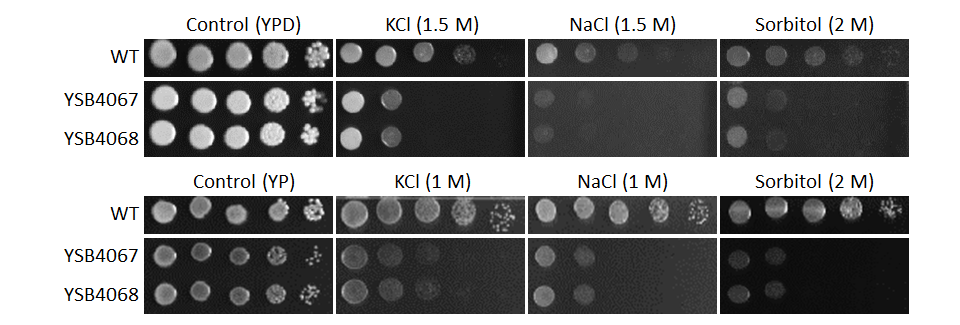

Osmotic Stress
Osmotic stress phenotype

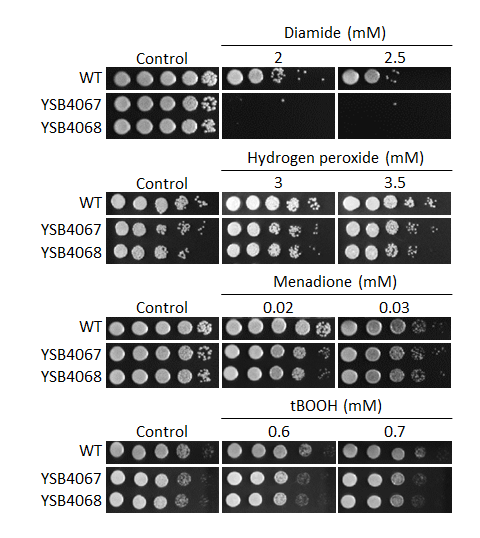

Oxidative Stress
Oxidative stress phenotype

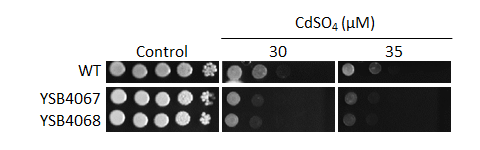

Heavy Metal Stress
Heavy metal stress phenotype

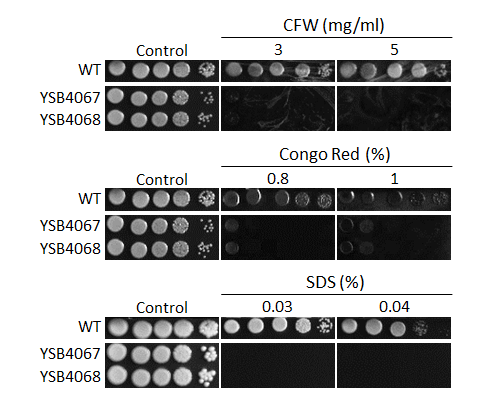

Cell Wall Stress
Cell wall stress phenotype

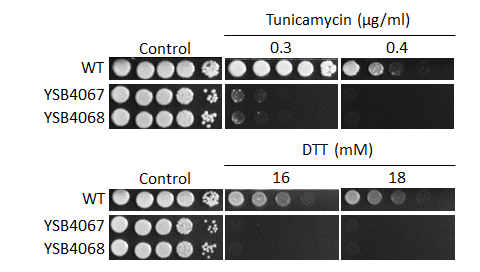

ER Stress
ER stress phenotype

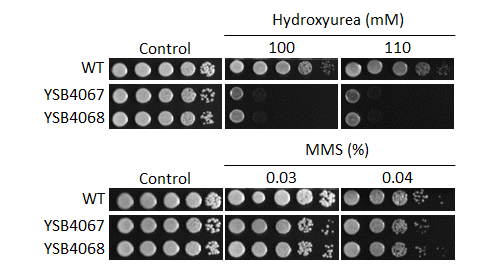

Genotoxic Stress
Genotoxic stress phenotype
Antifungal Drug Susceptibility
Antifungal drug susceptibility

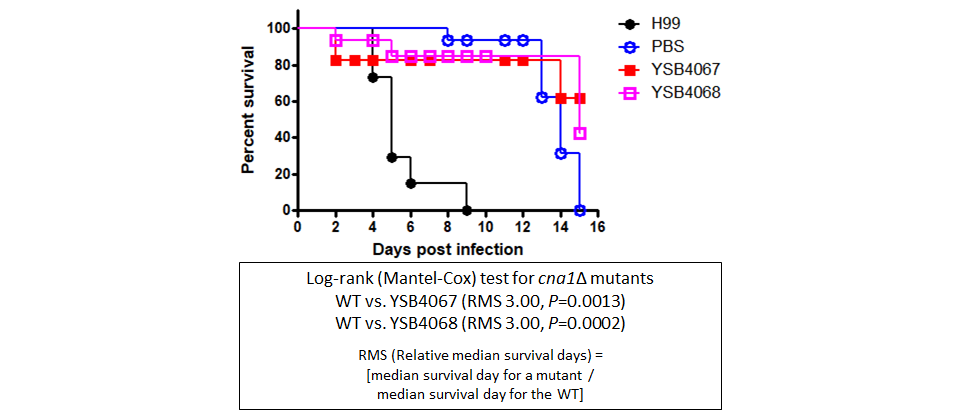

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data

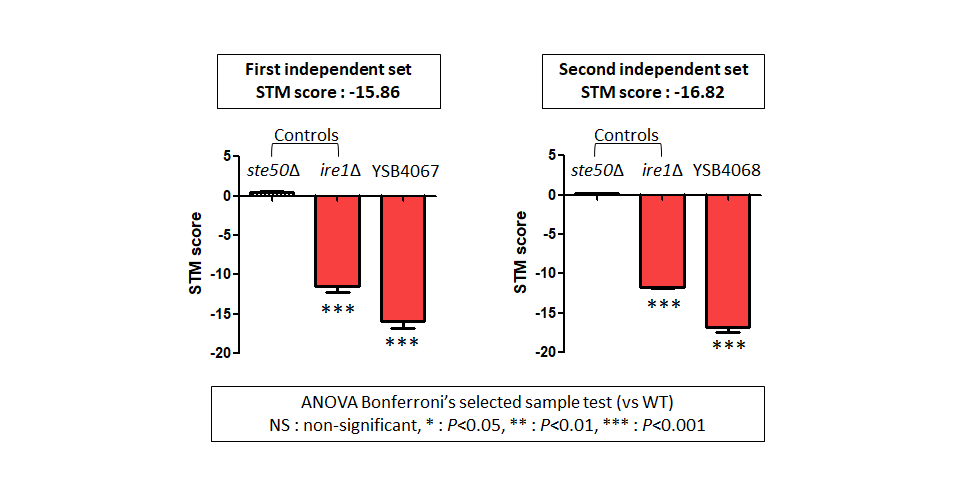

Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
