Phosphatase Browser

Detailed locus information, expression profile, gene disruption strategy, and phenotype assay data.

Detailed Locus Information for CNAG_04852T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotation7,8-dihydro-8-oxoguanine triphosphatase
Gene SymbolNDX4
Phosphatase NameN/A
Phosphatase ClassNucleoside-diphosphate-linked moiety X
KEGG Linkout KEGG::CNJ02760
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K178169.8e-39131.9
Amino Acid SequenceMASLTIPAEFSKLPFEQLPFSSQTPVRNWASLQNIKPWPIEYSLVFVVDRQRSQALLGLKRRGMGVGLYNGYGGKPEPGESMLDCALRELHEESGLVVNRFDLHYKGILLTSRPDPGTQQEKSLLRIHIYACTSWSGDPETTEEMEPKWINIADLPLGKMWPEARKYVPALMQSILQDRSNTEMLLARVDYEYLTSVQAPTPLPPLLGLSIKFENEDGDDLPMERLSGWWMAFTTVRILSSVIEDSGI
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml1214
BYPD 30°C, concentration: 5x10^7 cells/ml1317
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml1206
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml1464
EYPD 37°C, concentration: 5x10^7 cells/ml1443
FYP+galactose 30°C, concentration: 2x10^8 cells/ml1033

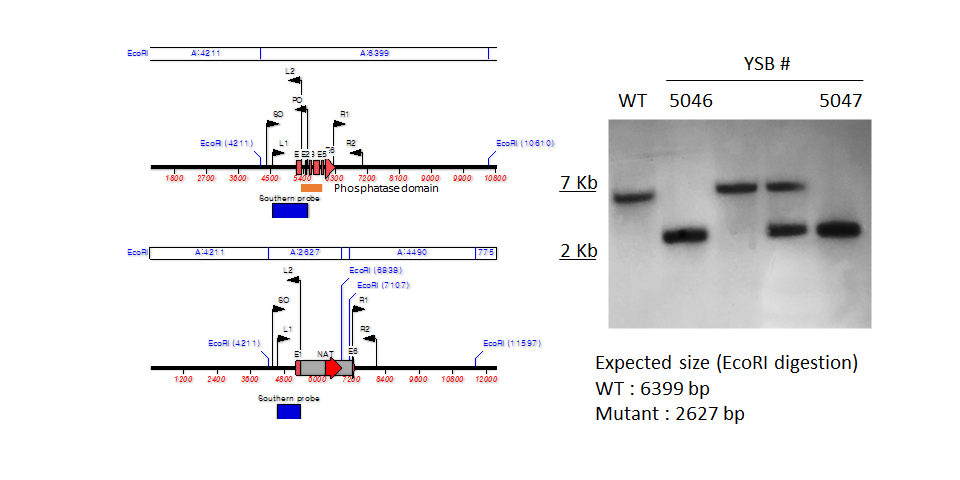

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_04852 5' flanking region primer 1CCAAGAGACAAGGGCTAAAAC
L2CNAG_04852 5' flanking region primer 2TCACTGGCCGTCGTTTTACCGACAACAAACACAAGGC
R1CNAG_04852 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGTGGCATTCACAACAGTGCG
R2CNAG_04852 3' flanking region primer 2AACACTGCTGGCTTTTCCG
SOCNAG_04852 diagnostic screening primer, pairing with B79ATTGGATGTCAGCCTCCTG
POCNAG_04852 Southern blot probe primerTACCGTCTTTCAAGCAGGC
STMNAT#204 STM primerGATCTCTCGCGCTTGGGGGA
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays
Growth
Growth phenotype
Mating Data
Mating phenotype
Virulence Factor Production
Capsule
Capsule phenotype
Urease
Urease phenotype
Melanin
Melanin phenotype
Stress Response and Adaptation
Osmotic Stress
Osmotic stress phenotype
Oxidative Stress
Oxidative stress phenotype

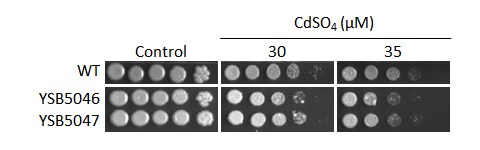

Heavy Metal Stress
Heavy metal stress phenotype

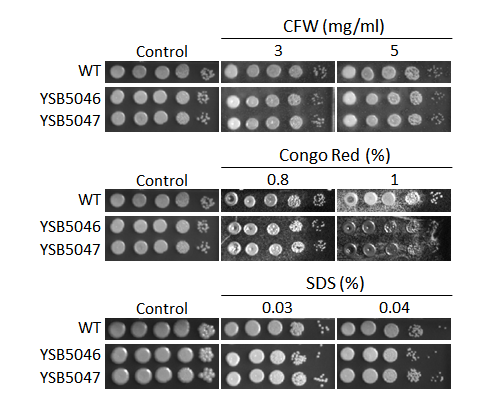

Cell Wall Stress
Cell wall stress phenotype

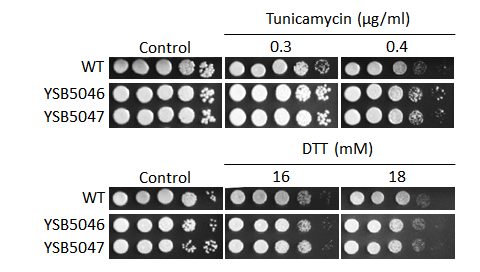

ER Stress
ER stress phenotype
Genotoxic Stress
Genotoxic stress phenotype

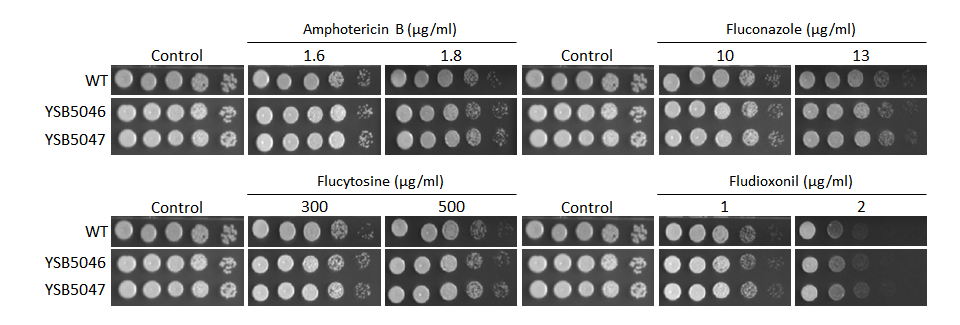

Antifungal Drug Susceptibility
Antifungal drug susceptibility

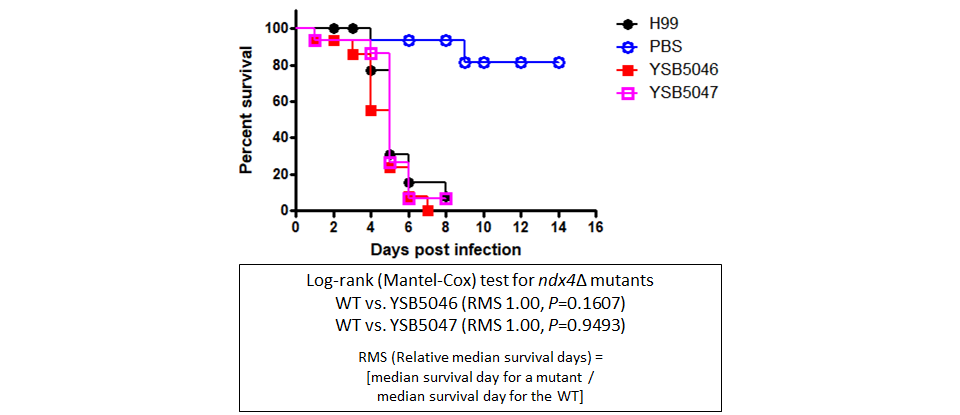

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data

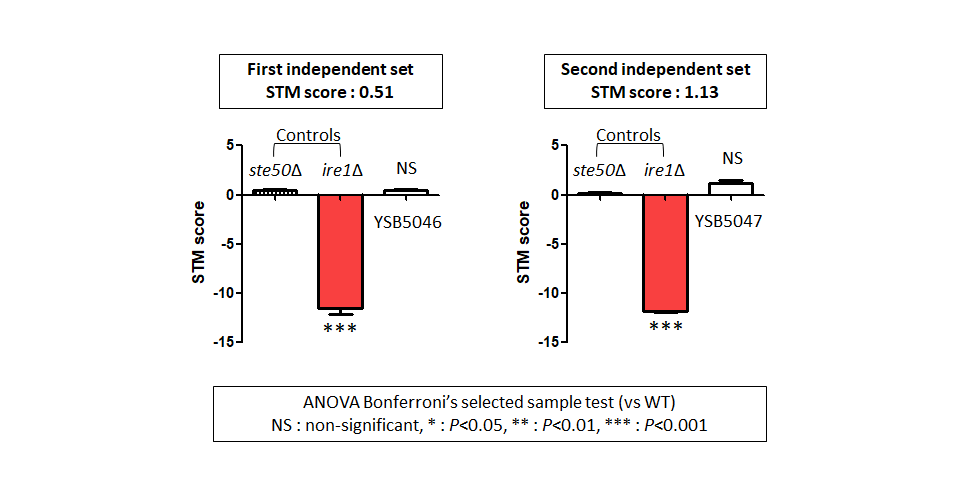

Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
