Detailed Locus Information for CNAG_05306T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationhypothetical protein
Gene SymbolPTC701
Phosphatase NameN/A
Phosphatase ClassMetallo-dependent phosphatase
KEGG Linkout KEGG::CNH03270
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K175081.4e-71238.9
Amino Acid SequenceMSKPKPGLGKGIGKGIARTLSVAHTTPDYSLIPTWDPPEIVLAHPARLRHPAASARLPIFRLSTVPRPYLSHSYPYPYPYSYSYSTLSTPPPAPAHPMPLSPDRVLYSYPSLPPSASIDVLLSALEINCHTSYTSIFNSSSIALDSSPSSSSPSSSSSARPNIPPVPYSSASPRNPPSPRSTQQSLKSRSLNSLSSSLDSSSSAPPPPGHTPGGGSGGGDMFGAVIPPLATSDGGALPSSSFIFHLGASGLAKDRPRTSSSSSSSSPARPSIPPRPRSFPLLSIPSPPSSVLRSVSIGEDSYFTRLDGLCIADGVGAWARSGRGEADAGRWSALMTHFCEEEVGNWWSGKDVYLRNPRGKAKCKGKERGKNSSVQSKESSGNKGNDRSNDKGKGKSSGMEEEIAEGEKERRPLDPVEIMQRGYEKCLSCAISEGINGSSTCLLALLHNSTLHIANLGDCCLLLIRGGKVVFRTEEMQHAFNFPLQVGTHSRDEPMKDAMRFDVPVKKGDIVVVGSDGLMDNMFDEDILEVLSQLSPSPSPSPSPPPQQRPSSSPQNPFPTHTHTHTYHTHTLTLNPQKASEALCTRARQISETTTTTTPFMCAAIEEGIDFVGGKKDDITVLVGVVGVRSLKEVSVKDGLEGVEEQGQEEEKERLMLYH
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml1778
BYPD 30°C, concentration: 5x10^7 cells/ml948
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml941
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml893
EYPD 37°C, concentration: 5x10^7 cells/ml726
FYP+galactose 30°C, concentration: 2x10^8 cells/ml2447
Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_05306 5' flanking region primer 1TTGTGGAAGGGGGTTATG
L2CNAG_05306 5' flanking region primer 2TCACTGGCCGTCGTTTTACATGAGTGAGTAGTCTGGCGTGG
R1CNAG_05306 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGTCCGAAACCACAACGACCAC
R2CNAG_05306 3' flanking region primer 2ACGGTCCCCACCAAAAGTTG
SOCNAG_05306 diagnostic screening primer, pairing with B79AGGCAGGAGGGAAGAAGAAC
POCNAG_05306 Southern blot probe primerTAAGGGATTGCTGCGTTG
STMNAT#58 STM primerCGCAAAATCACTAGCCCTATAGCG
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays

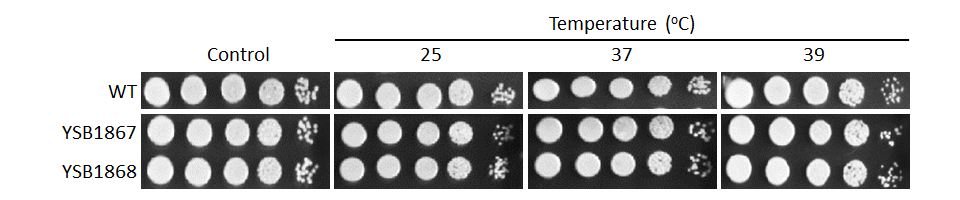

Growth
Growth phenotype
Mating Data
Mating phenotype
Virulence Factor Production
Capsule
Capsule phenotype

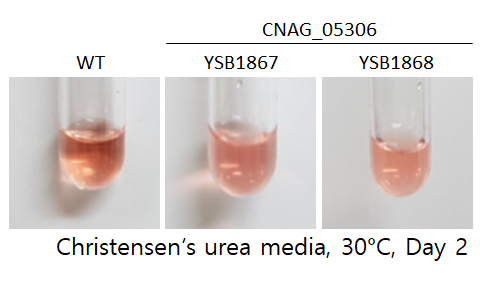

Urease
Urease phenotype

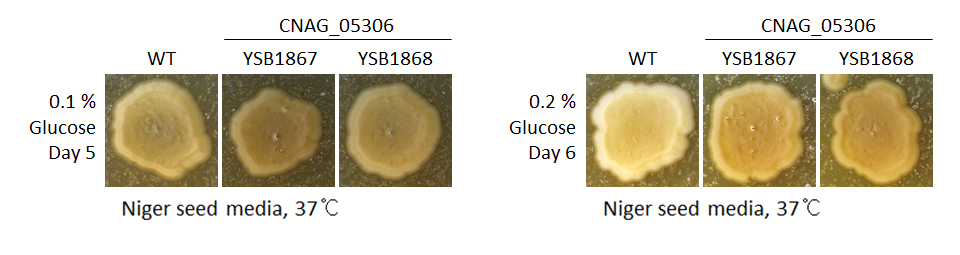

Melanin
Melanin phenotype
Stress Response and Adaptation

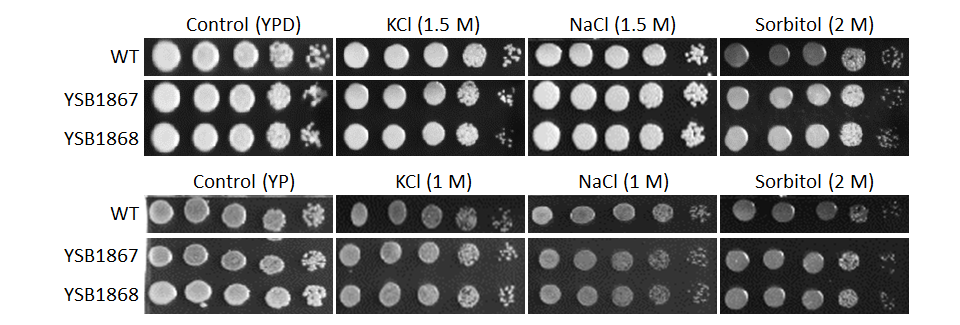

Osmotic Stress
Osmotic stress phenotype

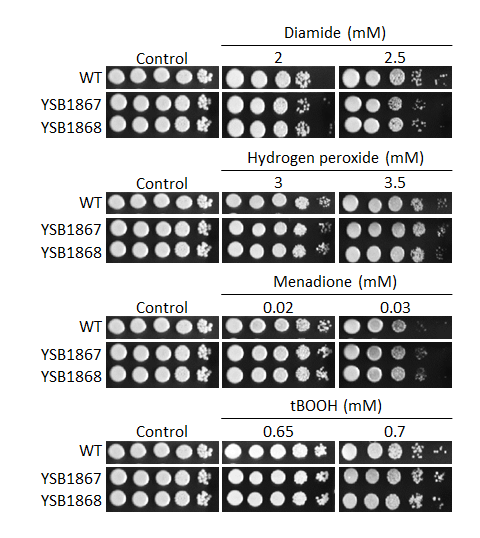

Oxidative Stress
Oxidative stress phenotype
Heavy Metal Stress
Heavy metal stress phenotype
Cell Wall Stress
Cell wall stress phenotype

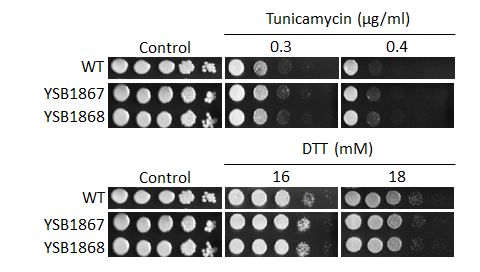

ER Stress
ER stress phenotype

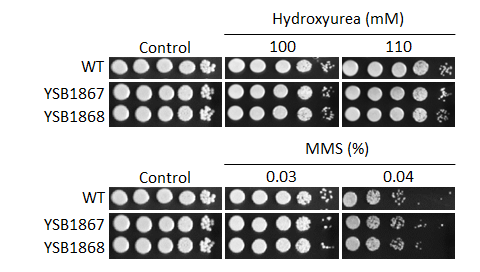

Genotoxic Stress
Genotoxic stress phenotype

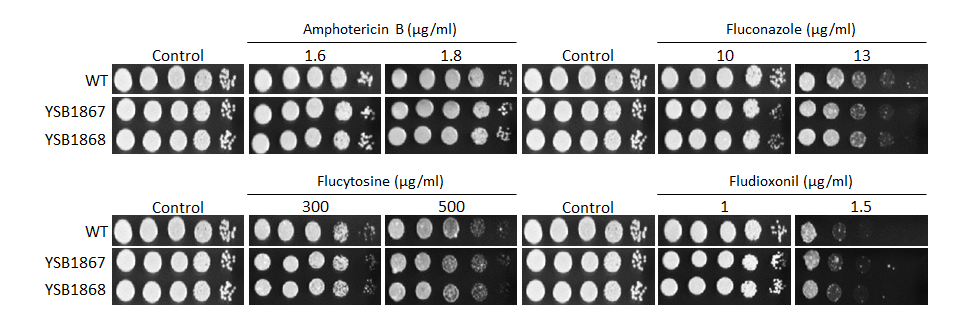

Antifungal Drug Susceptibility
Antifungal drug susceptibility
Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data
Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
