Phosphatase Browser

Detailed locus information, expression profile, gene disruption strategy, and phenotype assay data.

Detailed Locus Information for CNAG_05892T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationphosphoglycerate mutase
Gene SymbolSHB17
Phosphatase NameN/A
Phosphatase ClassHistidine phosphatase
KEGG Linkout KEGG::CNF00810
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K223156.8e-88292.7
Pfam Result
Pfam AccessionE-valueScore
PF00300 Pfam 1.9e-38 129.9
Amino Acid SequenceMPAKRMPRVYLVRHGETEWSLNGRHTGITDIPLTANGEKMVLEMSPRMIGPGKLINPAHLRHILISPRRRAQRTAELLFGGNTPPECNFITDPDVAEWDYGAYEGMLSKDIKKEAPNWSIWDDGCPPGETPGESPAQMSARVDRVIAKVRALHEKAQNAAENADEVDYSDVMIFSHGHFSRCFIARWCDLPIKAGYHFAAEPGGLAVLGYQHKSLKEPSLLGLNWYTEDALERR
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml3932
BYPD 30°C, concentration: 5x10^7 cells/ml5751
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml5252
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml6570
EYPD 37°C, concentration: 5x10^7 cells/ml4495
FYP+galactose 30°C, concentration: 2x10^8 cells/ml3629

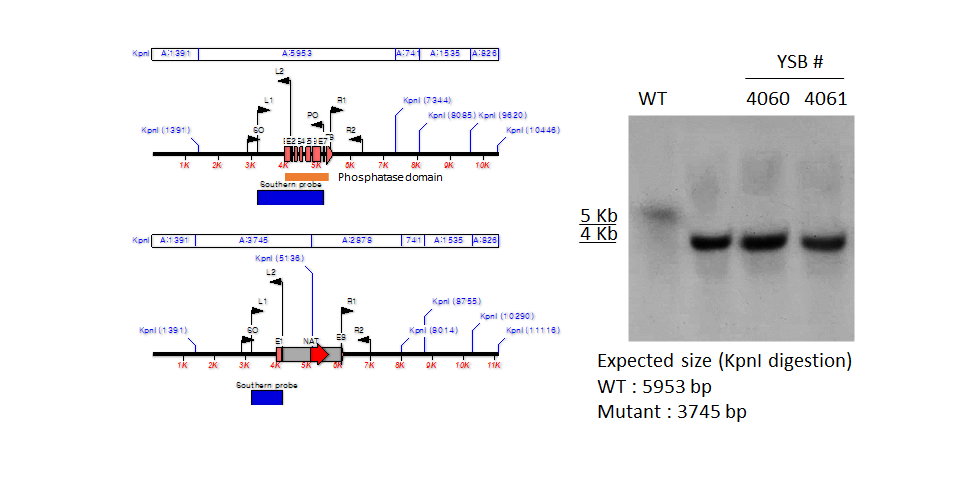

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_05892 5' flanking region primer 1AAGAGTCAACAGAGCAAACG
L2CNAG_05892 5' flanking region primer 2TCACTGGCCGTCGTTTTACAGATAGACAGCGGAAGCAC
R1CNAG_05892 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGCCGTCATTATTTGTAGAGCG
R2CNAG_05892 3' flanking region primer 2CTCACTTGATACCGCAGAAC
SOCNAG_05892 diagnostic screening primer, pairing with B79TTGTAGGTGGTAACATTGGG
POCNAG_05892 Southern blot probe primerGATAACCCAAAACAGCAAGC
STMNAT#212 STM primerAGAGCGATCGCGTTATAGAT
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays
Growth
Growth phenotype
Mating Data
Mating phenotype
Virulence Factor Production
Capsule
Capsule phenotype

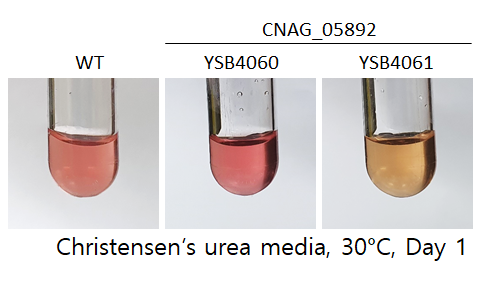

Urease
Urease phenotype

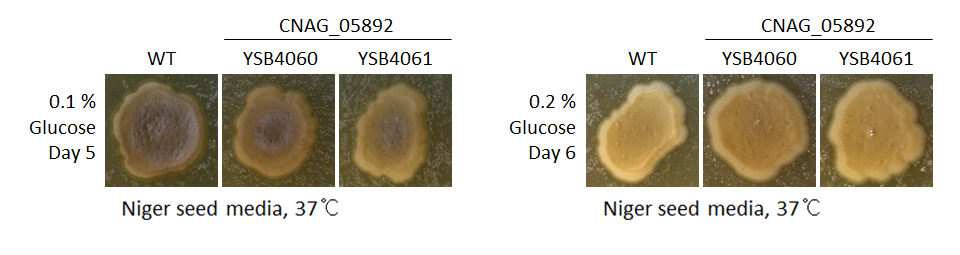

Melanin
Melanin phenotype
Stress Response and Adaptation
Osmotic Stress
Osmotic stress phenotype

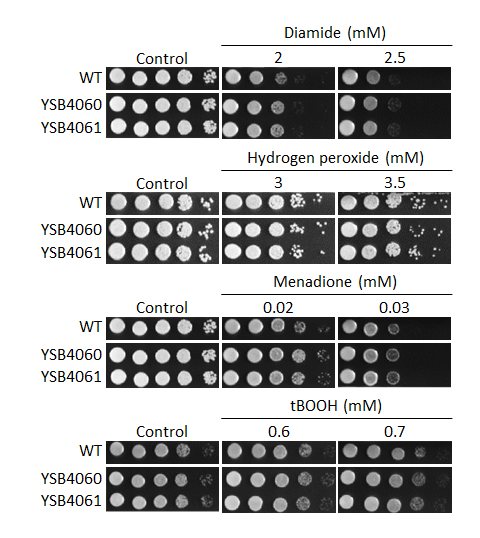

Oxidative Stress
Oxidative stress phenotype

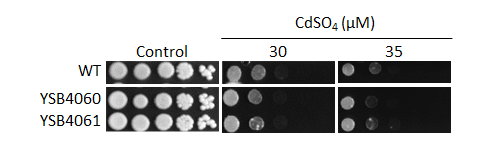

Heavy Metal Stress
Heavy metal stress phenotype

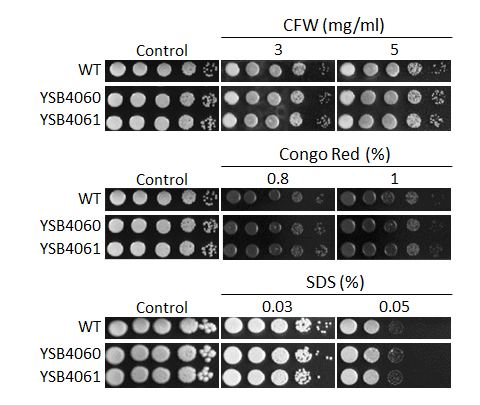

Cell Wall Stress
Cell wall stress phenotype

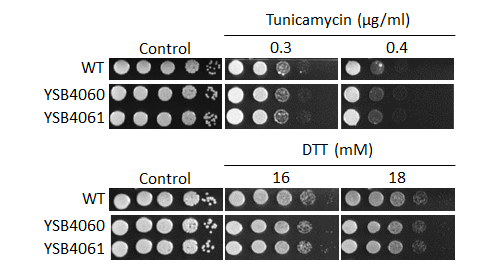

ER Stress
ER stress phenotype
Genotoxic Stress
Genotoxic stress phenotype
Antifungal Drug Susceptibility
Antifungal drug susceptibility

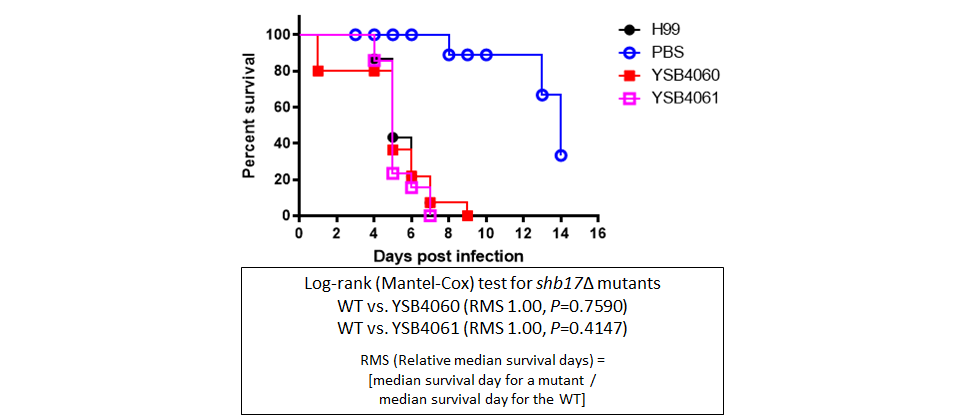

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data
Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
