Detailed Locus Information for CNAG_06232T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationtranscription factor C subunit 7
Gene SymbolHPP1
Phosphatase NameN/A
Phosphatase ClassHistidine phosphatase
KEGG Linkout KEGG::CNM02330
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K152066e-90300.6
Amino Acid SequenceMLKYIYVCRHGFRSNWVDPSIKSGPTGMNRDPPLAAHGLDQAESLATFLSSPSSTSPYPIPEIVFSSPFYRCIQTALPTAQALGLTLADGESFDDENEDDEQISAEGQKEKRGEAKRKRKSRKGLHLEHGVGEWYSPVYPNTGLHPRPSLSHALSPLFPPGSINPFYQPTLFPSRKGESLEGLHERAEIFIDAWTRRVEGEWPDVECVVIFAHAASIIALGRALTGNRSLEVIAGCATTSLYARKQSSSSSSSSSSSPKPNPGSSQYTILYSGRYDYLPLGLERDWSFADVVLTPDGEVVGDNGDGDGHLGEEWEEGLSDVGKRWLEDTRFERKRVSGKGEIGVGDRERKSRM
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml1683
BYPD 30°C, concentration: 5x10^7 cells/ml3169
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml3418
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml2598
EYPD 37°C, concentration: 5x10^7 cells/ml1434
FYP+galactose 30°C, concentration: 2x10^8 cells/ml2087

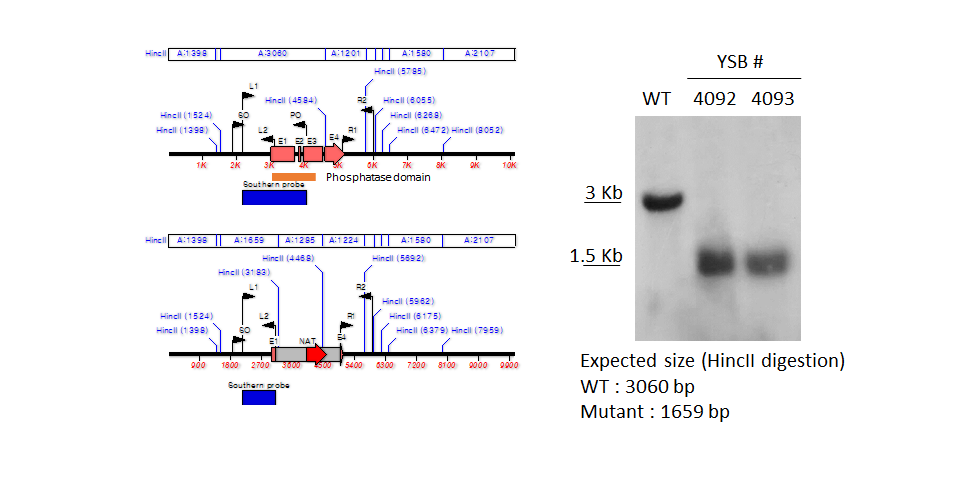

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_06232 5' flanking region primer 1ACCATTTCCAGGTATCCCC
L2CNAG_06232 5' flanking region primer 2TCACTGGCCGTCGTTTTACGAGGGTATGTGGACTGGTAAC
R1CNAG_06232 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGGCTCATTCAACAGAGGATTGTG
R2CNAG_06232 3' flanking region primer 2TCCTCTACAAGGCTATCCG
SOCNAG_06232 diagnostic screening primer, pairing with B79TTGGTAAGCCGTGACTCAGC
POCNAG_06232 Southern blot probe primerTTTCAGGGATGGGGTATGGG
STMNAT#213 STM primerCTGGGGATTTTGATGTGTCTATGT
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays
Growth
Growth phenotype

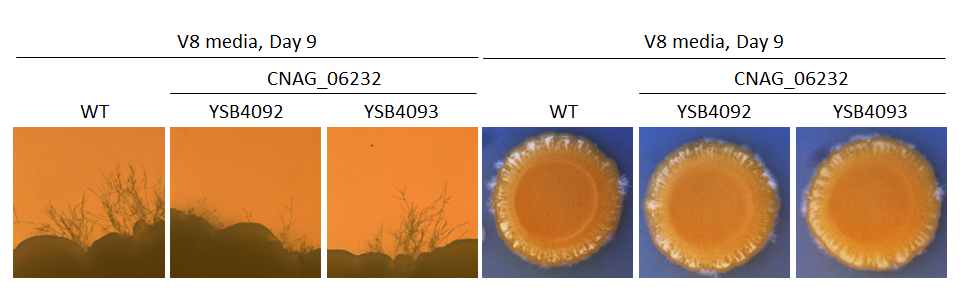

Mating Data
Mating phenotype
Virulence Factor Production

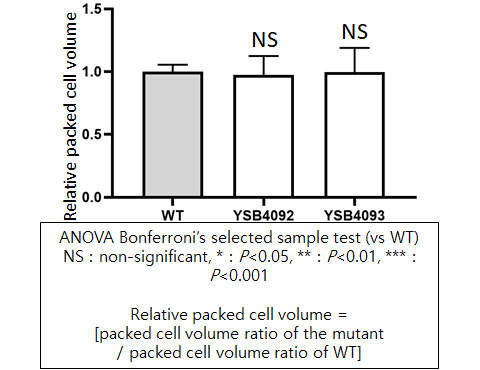

Capsule
Capsule phenotype

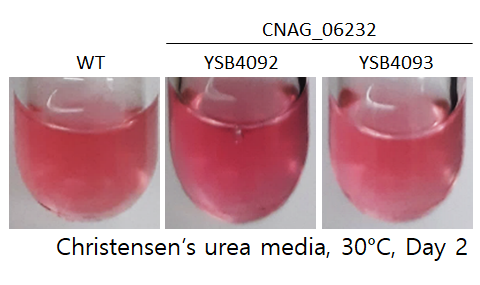

Urease
Urease phenotype
Melanin
Melanin phenotype
Stress Response and Adaptation
Osmotic Stress
Osmotic stress phenotype
Oxidative Stress
Oxidative stress phenotype

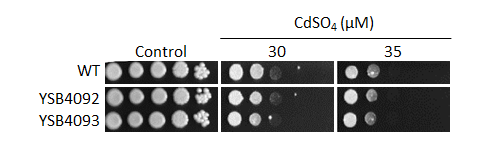

Heavy Metal Stress
Heavy metal stress phenotype
Cell Wall Stress
Cell wall stress phenotype
ER Stress
ER stress phenotype
Genotoxic Stress
Genotoxic stress phenotype

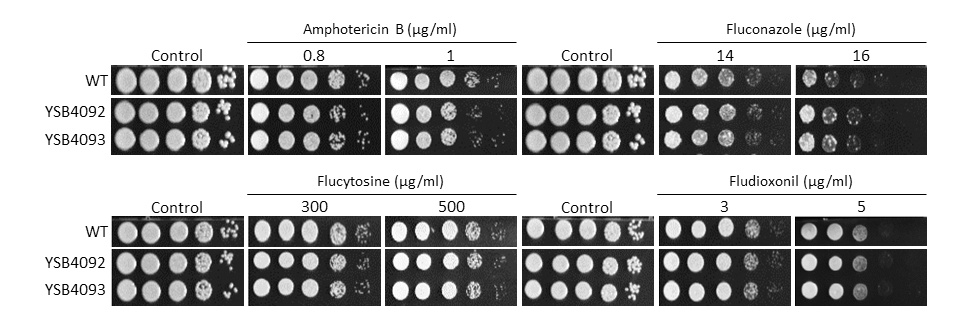

Antifungal Drug Susceptibility
Antifungal drug susceptibility

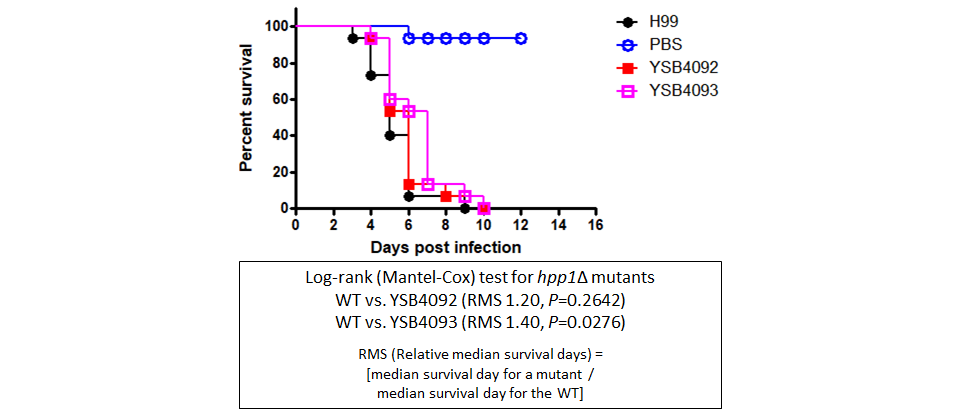

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data

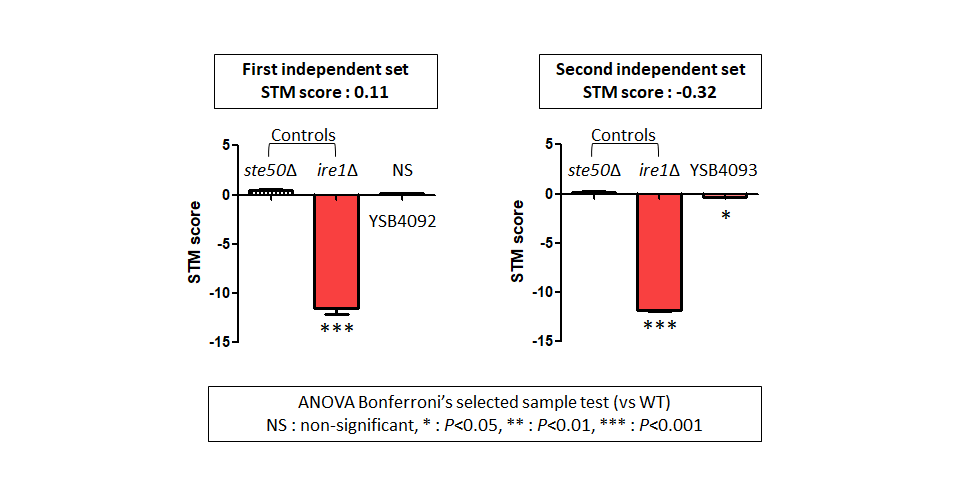

Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
