Detailed Locus Information for CNAG_06251T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationser/Thr protein phosphatase family protein
Gene SymbolPPP4
Phosphatase NameN/A
Phosphatase ClassPhosphoprotein phosphatase
KEGG Linkout KEGG::CNM02520
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K123509.7e-110240.3
K123509.7e-110127.8
Amino Acid SequenceMSNFAVLAALLGVVRFTTAEQITLGPTAYTAPGAFPTSFFSEYYNDPTQTASQVQPKISDRVLNKTYPLELTDPDTISTNDTADPLYYPPTRLHGSAATSLYQNVTDQIKIIVIGDTPSNCSKCIDALTAASSLAKRAPELVPDLLVSLCNHYDFASEAGCNVYTANAQGPYYAQVLAYADVSGYDGQYLCQNFITKSECARPPLPTFNASDFWTKPKPTNAKPPVPKGTDRIKVLHMSDFHIDPRYTTGSEGNCTSGLCCRRGNPVESLNSNYTVSVPAPRFGYFLCDTPWALGAAAVEAIPVLTGTDEDDAFNMTIFTGDMVSHDPYYELSRDYVEYTETALYDLWKQTLNPTSPLYAAIGNHDSYQQAFDAPSSLTGKLRKQSSWNYEHLAGLLESEGWIDGETAKKVKTHYGAYTIQHATNLKIITINTDLWYRANIFAYINSTHPDNFGFLKFLAEELGYDGTNPLPGPTDIFYQIIDRYSHVIAGLFWGHTHEDQHMIYYANNGTKMSAETAQNVGWIGPSITPLTDLNSGFRLYEVDAETWDILDAHTWYSNVSTYSSLDGQLEVGPSYVYEYNTRQAYGDNISWPDNAPLNATW
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml586
BYPD 30°C, concentration: 5x10^7 cells/ml381
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml355
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml608
EYPD 37°C, concentration: 5x10^7 cells/ml474
FYP+galactose 30°C, concentration: 2x10^8 cells/ml926

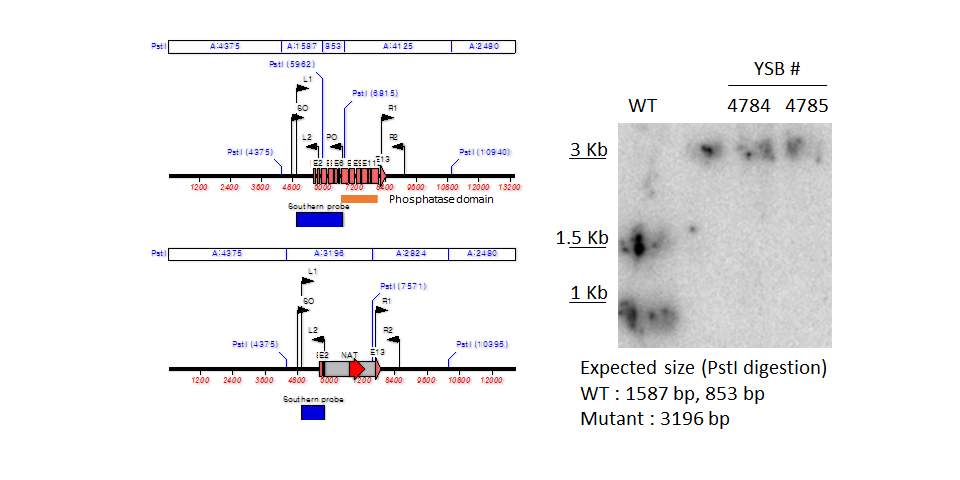

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_06251 5' flanking region primer 1AGTTTCAACGAAGCACGC
L2CNAG_06251 5' flanking region primer 2TCACTGGCCGTCGTTTTACCTGGGTAGGGTCATTGTAATAC
R1CNAG_06251 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGTACGGAAGCGTTCAGTAGG
R2CNAG_06251 3' flanking region primer 2GGATTTGAGTGGTGAGTCC
SOCNAG_06251 diagnostic screening primer, pairing with B79TGAAGATTGTCTGCCAGG
POCNAG_06251 Southern blot probe primerTGGAGTTGAGGGATTCTACC
STMNAT#296 STM primerCGCCCGCCCTCACTATCCAC
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays

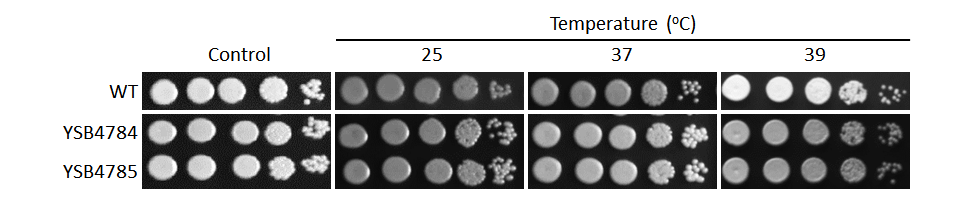

Growth
Growth phenotype

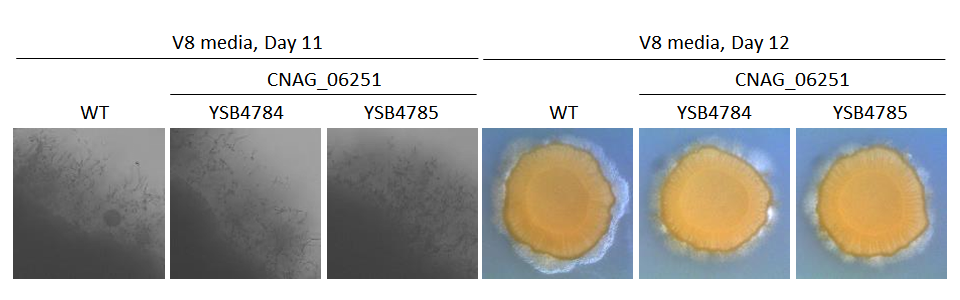

Mating Data
Mating phenotype
Virulence Factor Production

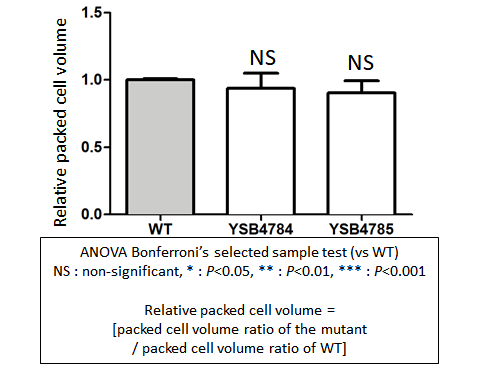

Capsule
Capsule phenotype

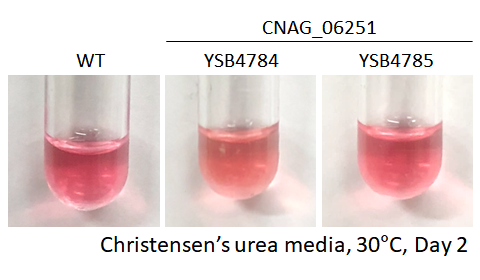

Urease
Urease phenotype

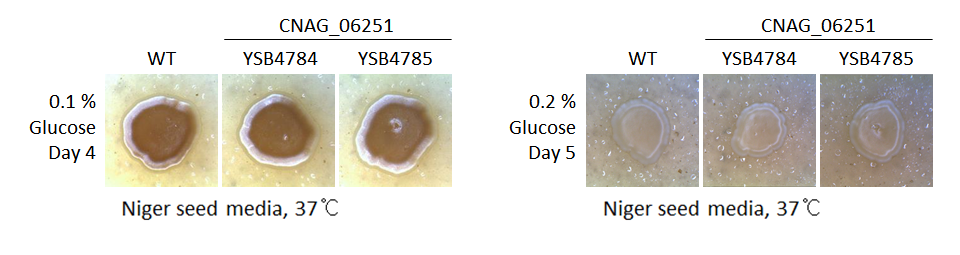

Melanin
Melanin phenotype
Stress Response and Adaptation

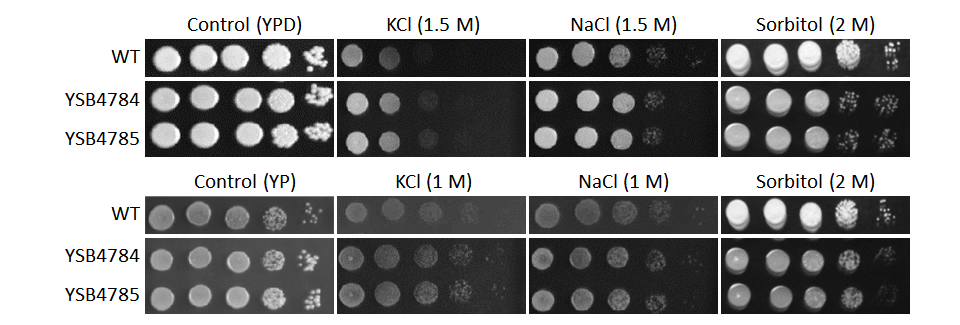

Osmotic Stress
Osmotic stress phenotype

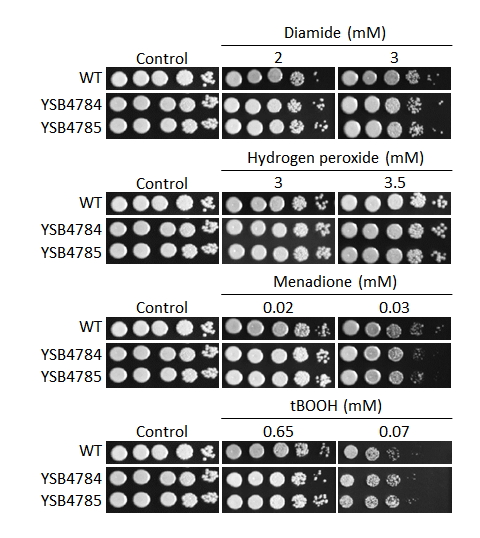

Oxidative Stress
Oxidative stress phenotype

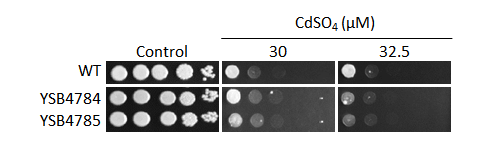

Heavy Metal Stress
Heavy metal stress phenotype

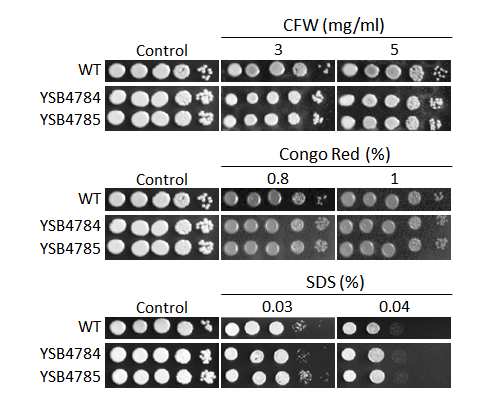

Cell Wall Stress
Cell wall stress phenotype

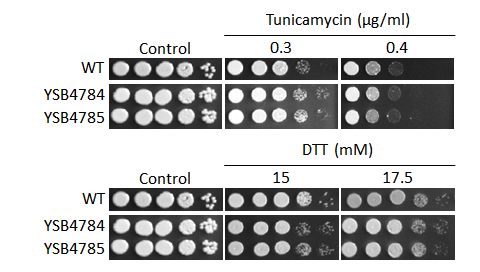

ER Stress
ER stress phenotype

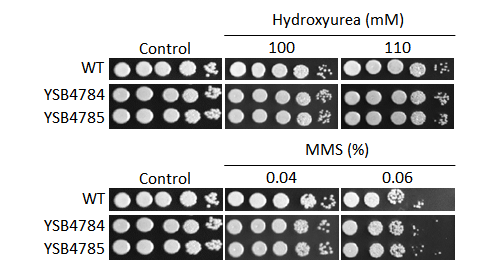

Genotoxic Stress
Genotoxic stress phenotype

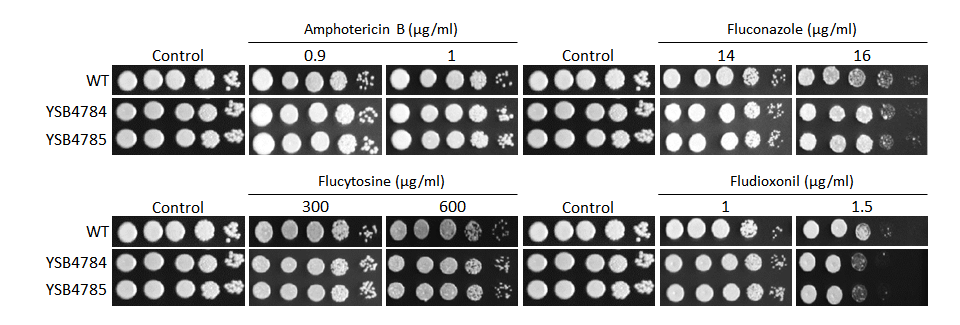

Antifungal Drug Susceptibility
Antifungal drug susceptibility

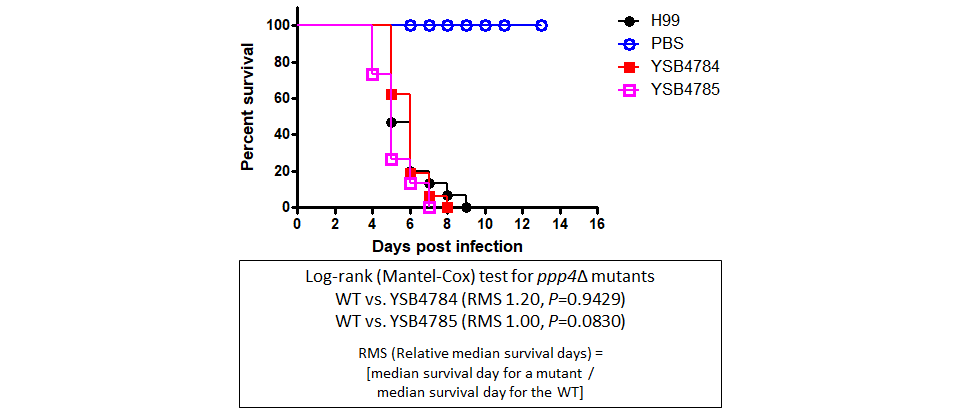

Virulence Data by the Insect Host Model (Galleria mellonella)
Galleria mellonella virulence data

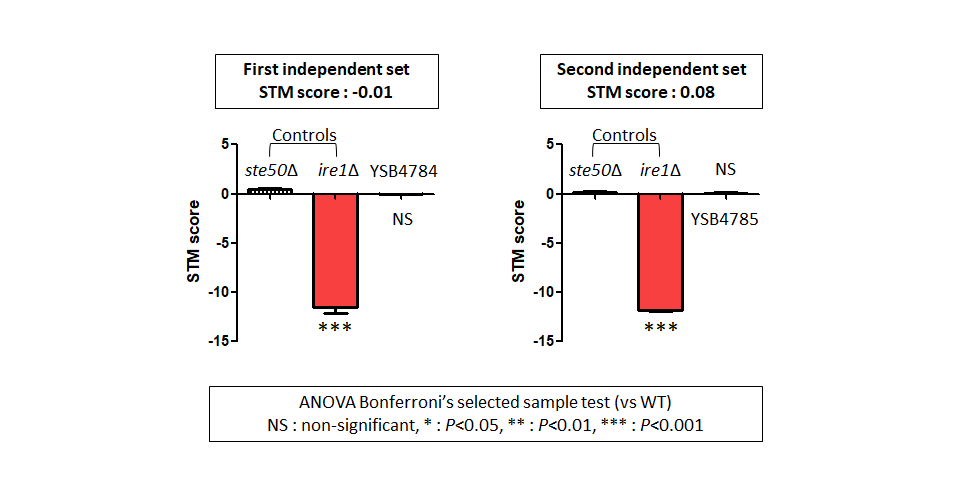

Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model
STM murine host model data
