Detailed Locus Information for CNAG_06587T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationcytoplasmic protein
Gene SymbolOCA2
Phosphatase NameN/A
Phosphatase ClassProtein tyrosine phosphatase
KEGG Linkout KEGG::CNF04310
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K180451.2e-45155.1
Pfam Result
Pfam AccessionE-valueScore
PF03162 Pfam 1.5e-35 120.8
Amino Acid SequenceMPTRVTPGVTMVDDGPSVVVPPINFSLVAPGVYRSGHPNRKNFPFLKRLKLKGIIYVEGSDPYRQDSLDFVQSQNLELYRFDFSNESDLYTPEGKERMEALLKVLLDKRNYPLLVHDDTGKGSCTLVCALIRRFQSWSLTGLFAEGDMFAGPAGGAEGVGLGETGMEFIAAFQPKLVNYDRTWRPDWADY
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml849
BYPD 30°C, concentration: 5x10^7 cells/ml834
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml982
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml814
EYPD 37°C, concentration: 5x10^7 cells/ml926
FYP+galactose 30°C, concentration: 2x10^8 cells/ml814
Gene Disruption Strategy

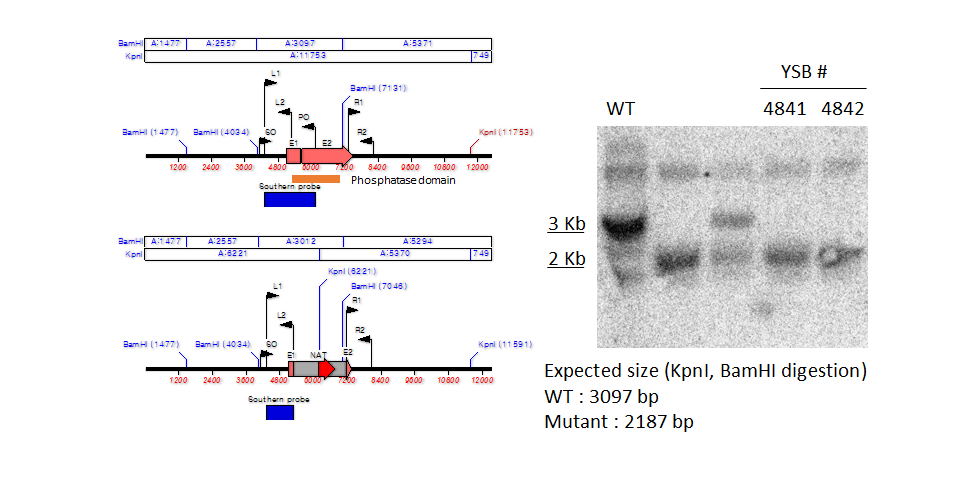

Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_06587 5' flanking region primer 1CGATAGGTAATGGCGGTAG
L2CNAG_06587 5' flanking region primer 2TCACTGGCCGTCGTTTTACACATAGATGATGCCCTTGAG
R1CNAG_06587 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGTCTTGTGCTTGTTGACTGC
R2CNAG_06587 3' flanking region primer 2CGATGGACCTTAGTCAAATG
SOCNAG_06587 diagnostic screening primer, pairing with B79GGCTTCTTATCTTCCACCTC
POCNAG_06587 Southern blot probe primerAAGGAACGCTCTTTCACG
STMNAT#231 STM primerGAGAGATCCCAACATCACGC
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays
Growth

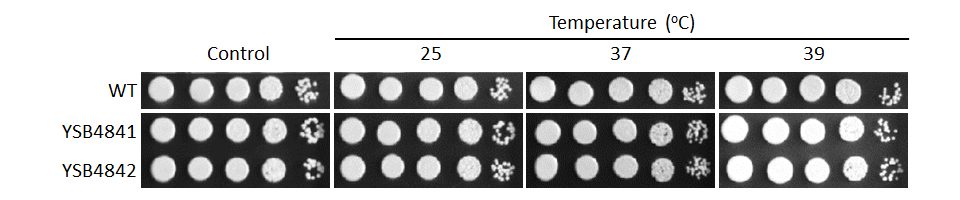

Growth phenotype
Mating Data

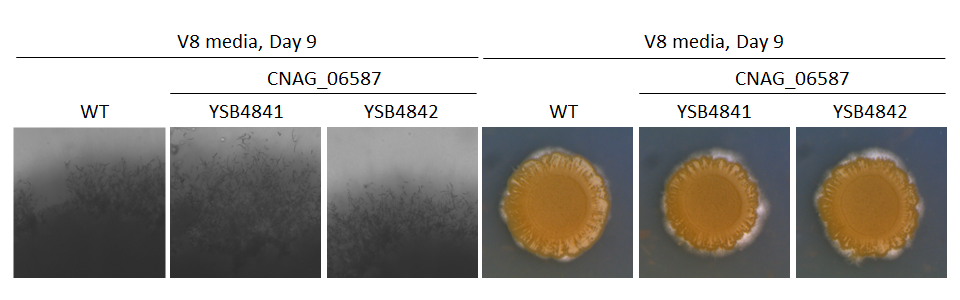

Mating phenotype
Virulence Factor Production
Capsule

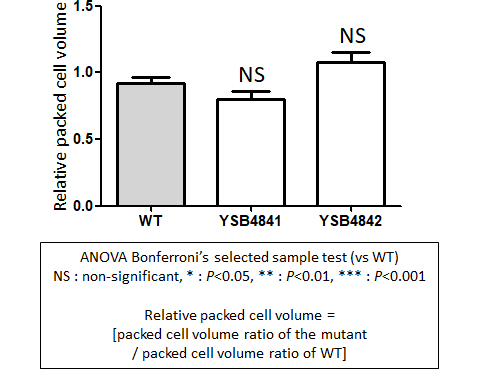

Capsule phenotype
Urease

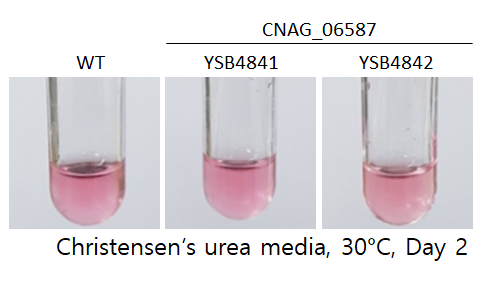

Urease phenotype
Melanin

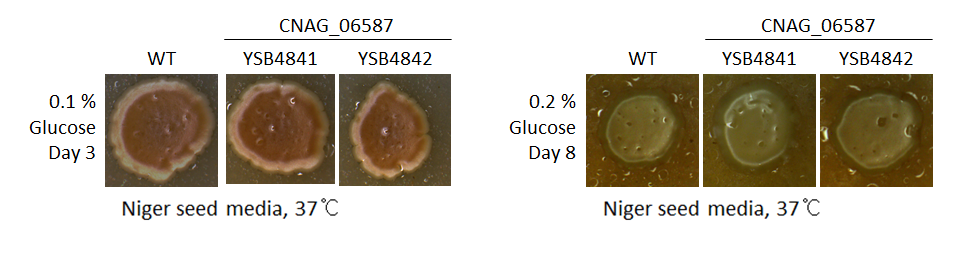

Melanin phenotype
Stress Response and Adaptation
Osmotic Stress

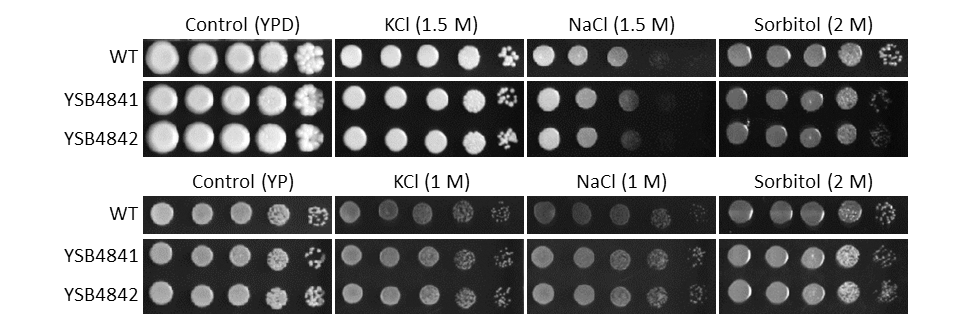

Osmotic stress phenotype
Oxidative Stress

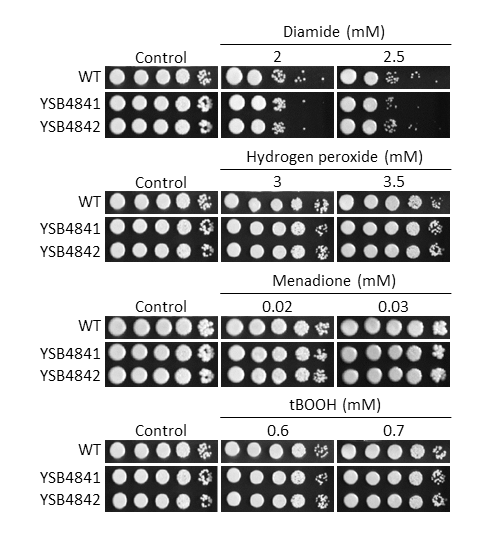

Oxidative stress phenotype
Heavy Metal Stress

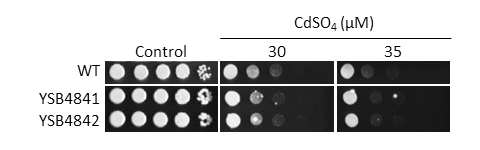

Heavy metal stress phenotype
Cell Wall Stress

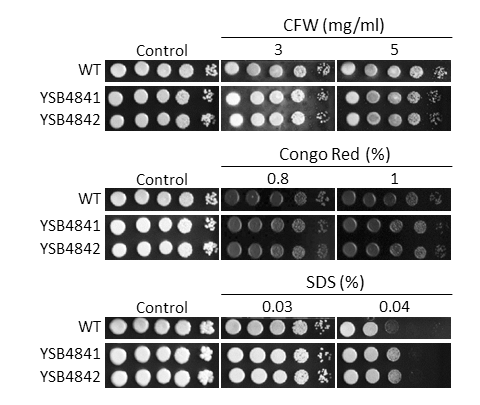

Cell wall stress phenotype
ER Stress

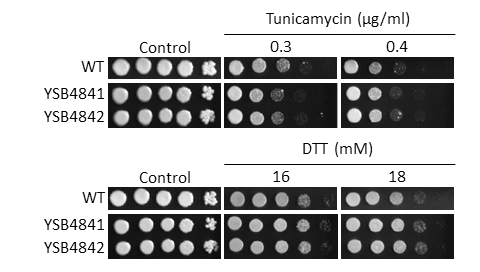

ER stress phenotype
Genotoxic Stress

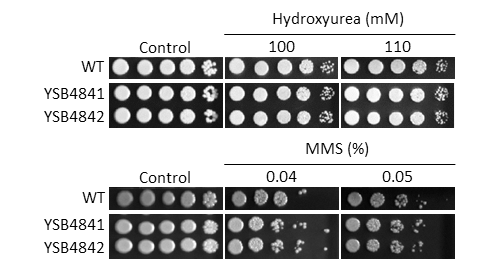

Genotoxic stress phenotype
Antifungal Drug Susceptibility

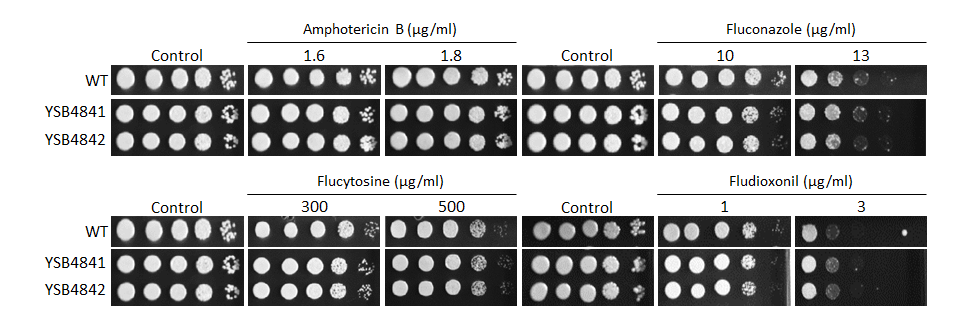

Antifungal drug susceptibility
Virulence Data by the Insect Host Model (Galleria mellonella)

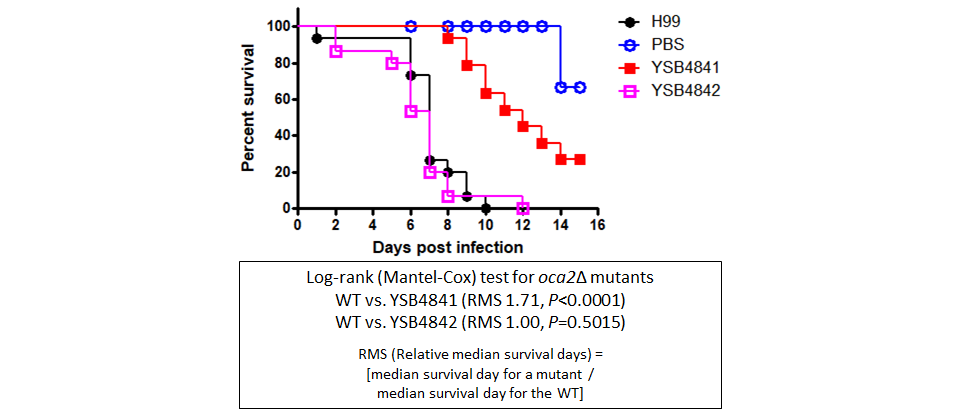

Galleria mellonella virulence data
Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model

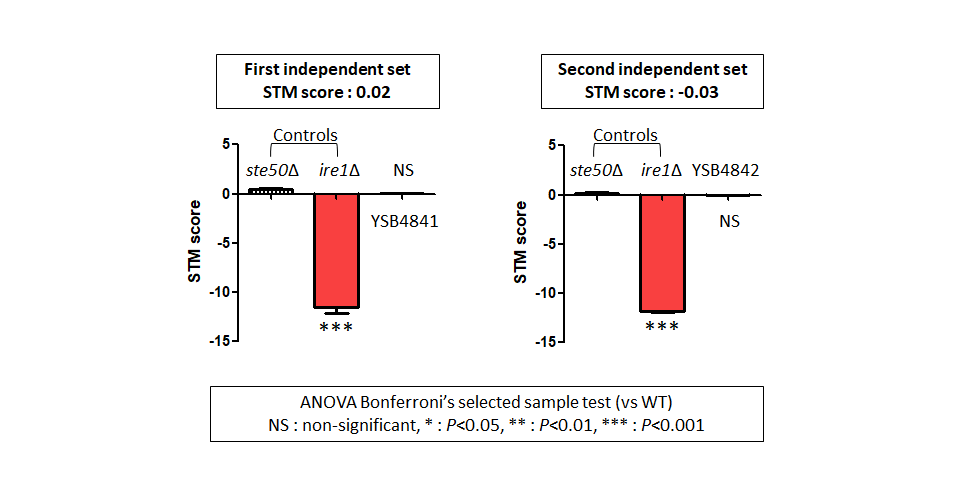

STM murine host model data
