Detailed Locus Information for CNAG_03673T0
SpeciesCryptococcus neoformans var. grubii H99
Gene Annotationserine/threonine-protein phosphatase PP-Z1
Gene SymbolPPZ1
Phosphatase NameN/A
Phosphatase ClassPhosphoprotein phosphatase
KEGG Linkout KEGG::CNB01720
Genome Browser JBrowse link goes here.
Protein Domain / KEGG Annotation
KEGG Result
KO AccessionE-valueScore
K062691.4e-182606.2
Pfam Result
Pfam AccessionE-valueScore
PF00149 Pfam 3.1e-43 146.7
PF16891 Pfam 2.2e-19 67.5
Amino Acid SequenceMGQGQSSSKKLGRTSSKQLPPQDLADSLARTSIADRDAAAGHPPPPDALSPAKLAAKRRGSTRDAPPASYASSTSDAPPAPAPPSPSPSSIPTTQNILAAPREGLKSSFLGSSPPPPSAMSVSPASTTGGRVRSSSPPPSSSPTRQTGGHLSRDSASSLSPGFTLTQTVSRTESAAGGFQILDVDNMIQRLLEAGYSGKVTKSPPLKNAEITSVCAAAREVFLSQPTLIELSPPVKIVGDVHGQYADLLRMFEMCGFPPAANYLFLGDYVDRGKQSLETILLLLCYKIKYPENFFLLRGNHECANVTRVYGFYDECKRRTNIKIWKTFIDVFNTLPIASIVASKIFCVHGGLSPSLKSMDDIRRIQRPTDVPDYGLLNDLVWSDPSDTALDWEDNERGVSFCYGKSVINAFLATHDMDLICRAHMVVEDGYEFYNDRTLVTVFSAPNYCGEFDNFGAVMSVSEDLLCSFELLKPLDGAALKKEMTKSKRKSLQAHQSPPNNPMAQSF
Expression Data
NotationConditionNormalized Raw Expression
AYPD 30°C, concentration: 2x 10^8 cells/ml1361
BYPD 30°C, concentration: 5x10^7 cells/ml1653
CYPD 30°C, fluconazole treatment, concentration: 5x10^7 cells/ml1693
DYPD 30°C, SDS 0.01% treatment, concentration: 5x10^7 cells/ml1445
EYPD 37°C, concentration: 5x10^7 cells/ml1413
FYP+galactose 30°C, concentration: 2x10^8 cells/ml1913

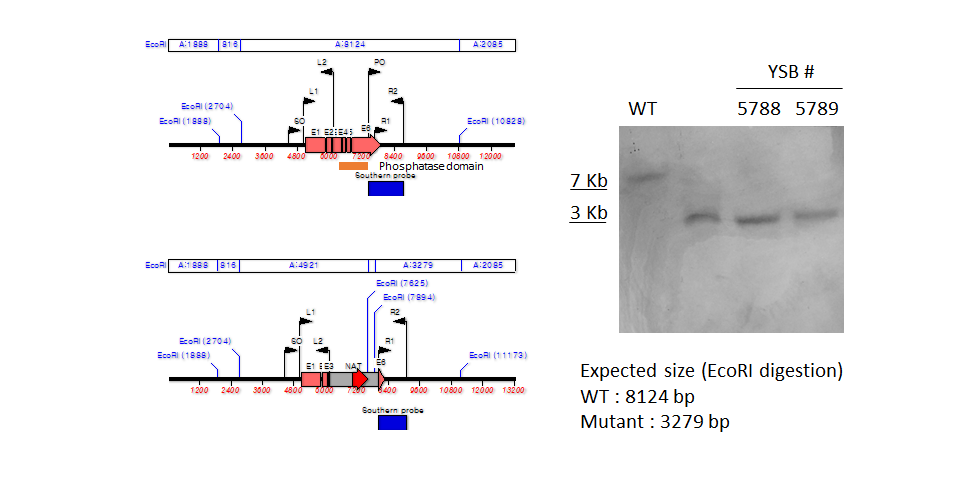

Gene Disruption Strategy
Mutant construction design Mutant construction design Mutant construction design Mutant construction design
Primer NameDescriptionPrimer Sequence
L1CNAG_03673 5' flanking region primer 1TCTGTGCTGCTTCTCTTTG
L2CNAG_03673 5' flanking region primer 2TCACTGGCCGTCGTTTTACCATTCGTCGTAGAAACCG
R1CNAG_03673 3' flanking region primer 1CATGGTCATAGCTGTTTCCTGGTCTTACTCGTTTTTTGGGG
R2CNAG_03673 3' flanking region primer 2CTCAGGCGACAAAATAAGC
SOCNAG_03673 diagnostic screening primer, pairing with JOHE12579AGCGAAAATGGTTCCAGC
PO1CNAG_03673 Southern blot probe primer 1TGCTGCTTCTCTTTGTTGC
PO2CNAG_03673 Southern blot probe primer 2TTTCGTAAACCTCTGGCG
STMNAT#295 STM primerACACCTACATCAAACCCTCCC
STM commonSTM common primerGCATGCCCTGCCCCTAAGAATTCG
* Red marked sequences indicate the extended M13 forward and reversed sequences to overlap PCR with pNAT plasmid.
Phenotype Assays
Growth

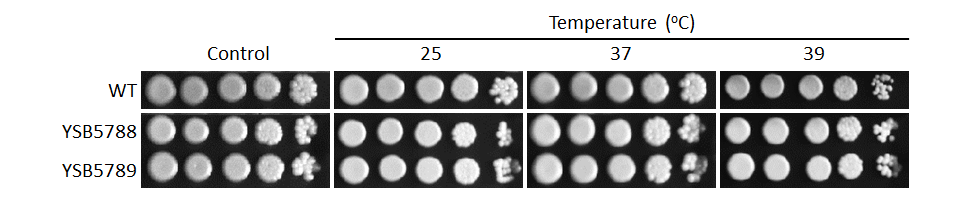

Growth phenotype

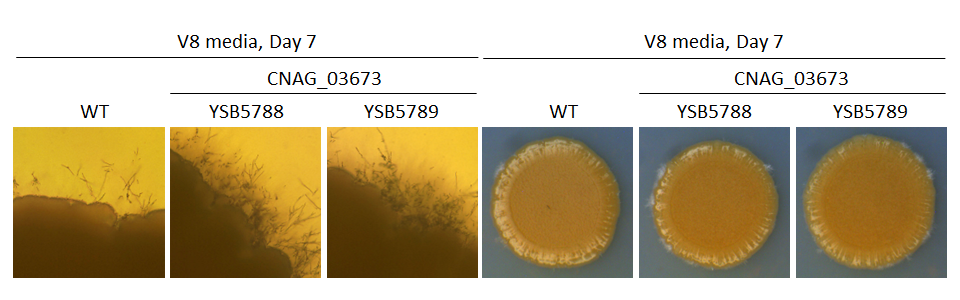

Mating Data
Mating phenotype
Virulence Factor Production

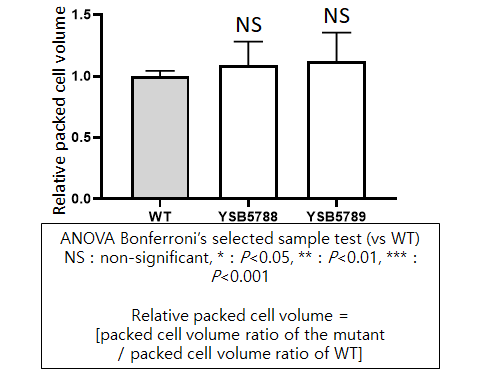

Capsule
Capsule phenotype

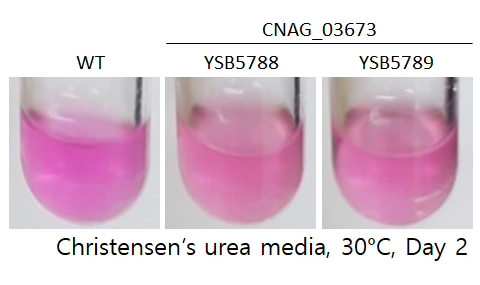

Urease
Urease phenotype
Melanin

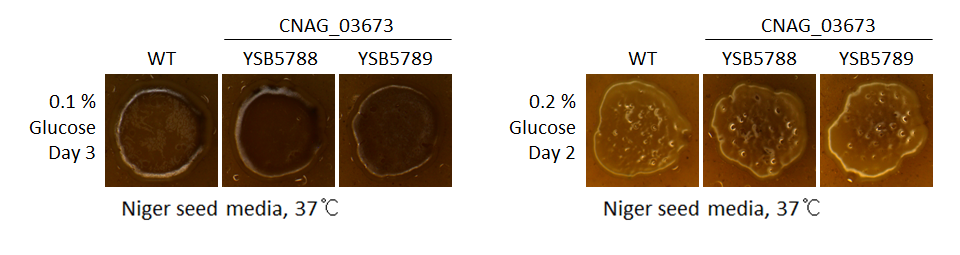

Melanin phenotype
Stress Response and Adaptation
Osmotic Stress

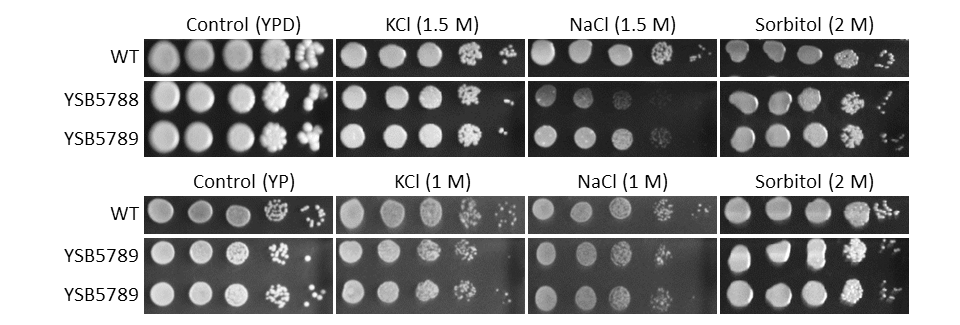

Osmotic stress phenotype

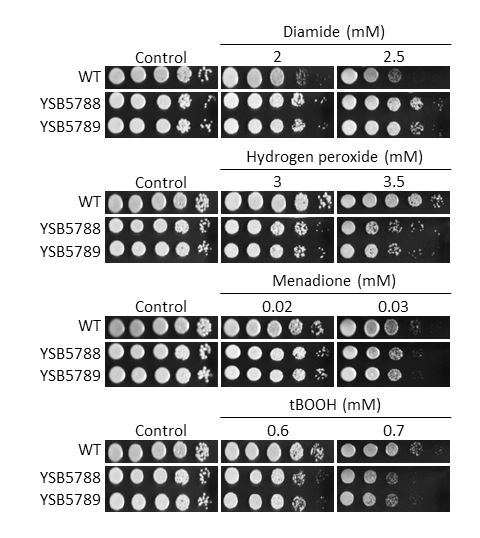

Oxidative Stress
Oxidative stress phenotype

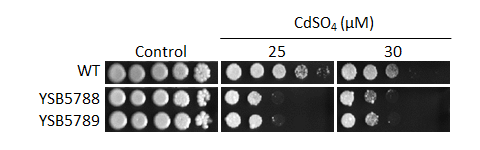

Heavy Metal Stress
Heavy metal stress phenotype
Cell Wall Stress

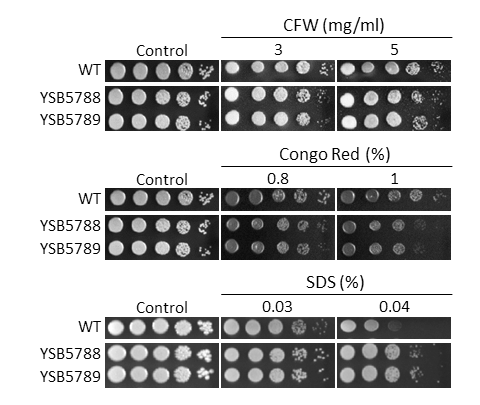

Cell wall stress phenotype
ER Stress

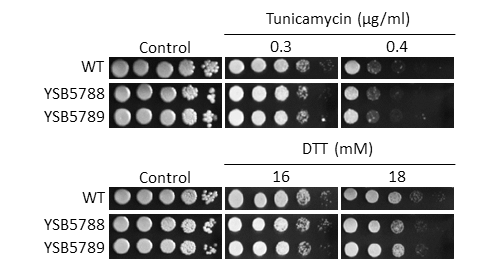

ER stress phenotype
Genotoxic Stress

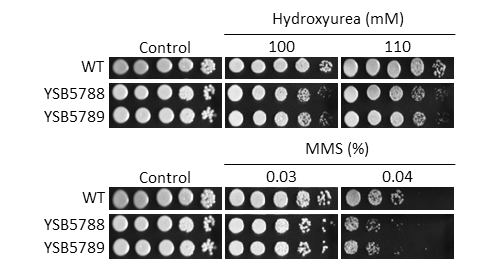

Genotoxic stress phenotype

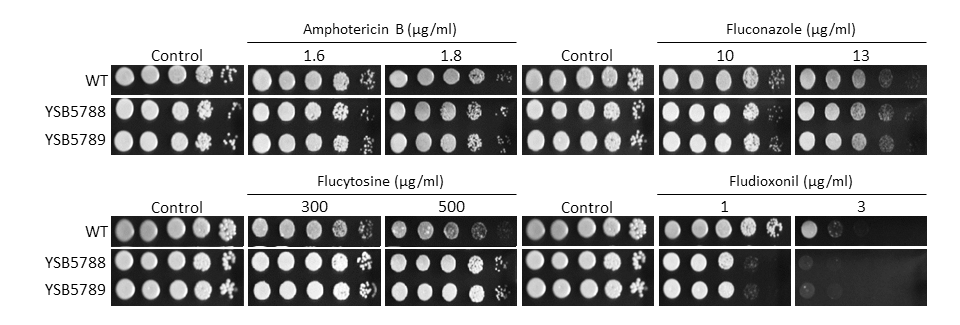

Antifungal Drug Susceptibility
Antifungal drug susceptibility
Virulence Data by the Insect Host Model (Galleria mellonella)

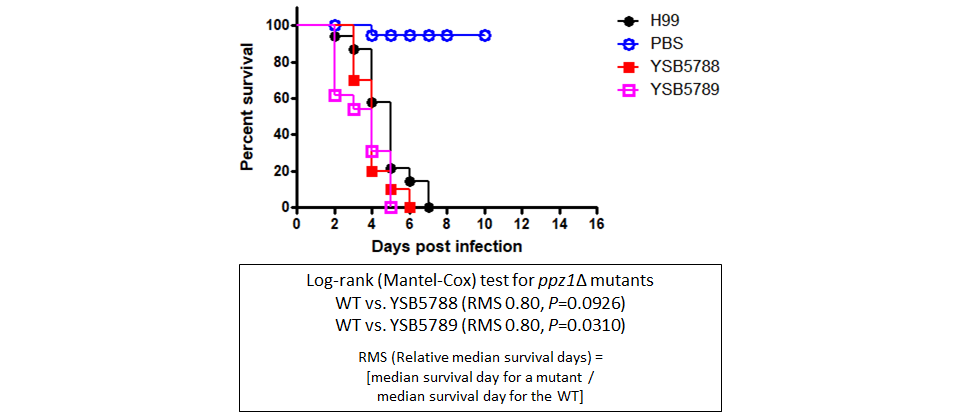

Galleria mellonella virulence data
Lung Infectivity Data by the Signature-tag Mutagenesis-based Murine Host Model

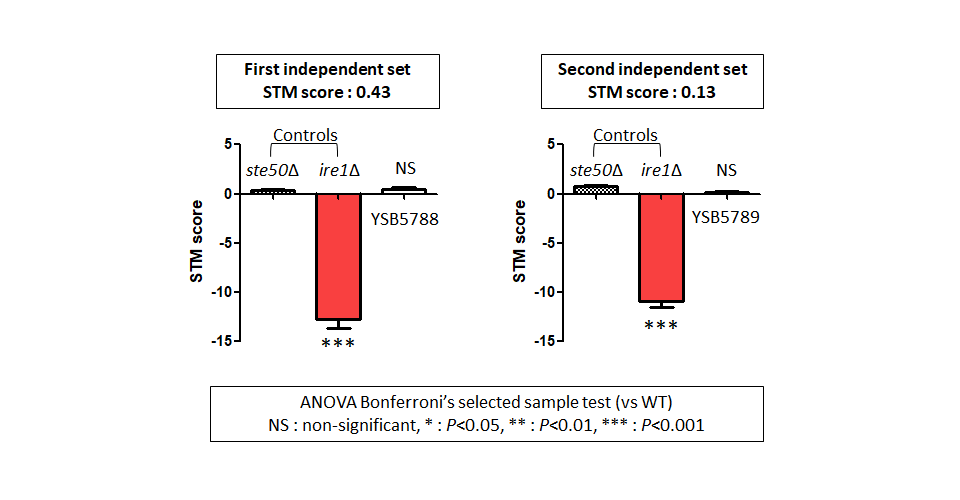

STM murine host model data
